SDLVA-218-65-16MV-12DBM Active

Successive Detection Log Video Amplifier (SDLVA)

SDLVA-218-65-16MV-12DBM
Product Feature

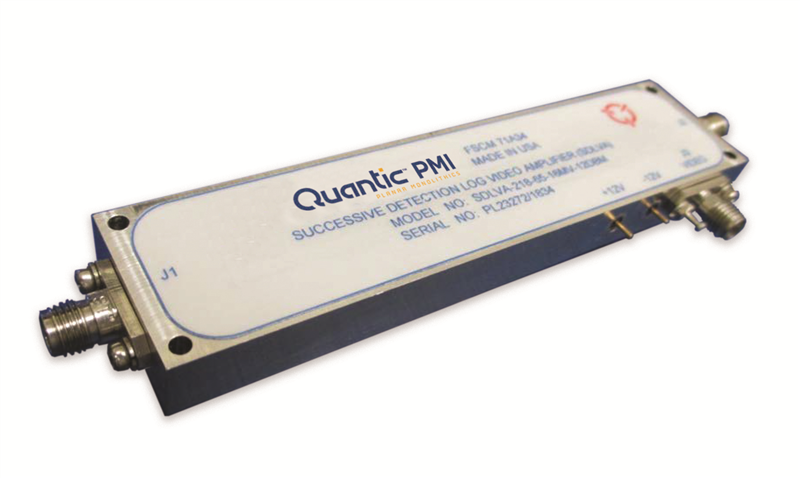

Quantic PMI Model SDLVA-218-65-16MV-12DBM is a successive detection log video amplifier (SDLVA) that operates between the 2 to 12.5 GHz frequency range with a dynamic range of 65 dB, a log slope of 16.7 mV/dB and a nominal video bandwidth of 0.05 GHz.  Designed using cutting-edge GaAs technology which provides stunning performance and reliability in a compact package measuring 4.24" x 0.994" x 0.38" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 2
Frequency Max (GHz): 18
TSS (dBm): -64 Max
Log Slope (mV/dB): 16 ± 2
Log Range (dBm): -55 to +10 dBm
Rise Time: 10 ns Max
Fall Time: 20 ns Max
Recovery Time: 50 ns Max
Power Supply: +12 V @ 850 mA
-12 V @ 250 mA
VSWR: 2.0:1 Max
Video Log Linearity: ±2.2 dB Typ, ±2.5 dB Max
Video Log Slope (mV/dB): 16 ± 2 mV/dB
Video Freq Flatness: ±4 dB Max
Video Load (Ohms): 35
Pulse Range: 25 ns to CW
Dynamic Range: -55 to +10 dBm
Input Power: +20 dBm
Delay Time: <2 ns
Input Impedance: 50 Ohm
Connectors: SMA (F)
Size: 4.24" x 0.994" x 0.38"
Finish: Nickel Place per MIL-C-26074
Weight: 3 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: 0 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +86 ºC
Humidity: 95% (Continuous and Intermittent)
Shock: MIL-S-901 Grade A Class 1 Type B
Vibration: MIL-STD-167-1 Type 1 (4-50Hz)
