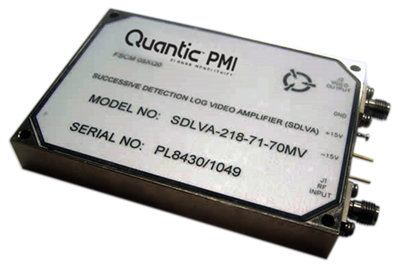

SDLVA-218-71-70MV Active

CW Immune Extended Range Detection Log Video Amplifiers (ERDLVA)

Product Feature

Quantic PMI Model SDLVA-218-71-70MV is a CW Immune Extended Range Detection Log Video Amplifiers (ERDLVA) which offers 71 dB dynamic range over the frequency range of 2 to 18 GHz. This model offers a fast rise time of 35 ns maximum and a recovery time of <350 ns. The unit is temperature compensated such that log linearity over temperature remains less than +/-1.5 dB over the full operating temperature range of -20 to +85 °C. This model is supplied in a compact housing measuring only 3.5" x 2.5" x 0.5". [Optional frequency ranges covering 0.1 to 26.5 GHz are available.]

Product Specifications

General Parameters:
Type: DLVA
Status: Active
Frequency Range: 2 to 18 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
TSS: -72 dBm
TSS (Measured): -72 dBm
Size: 3.5 " x 2.5 " x 0.5"
Log Slope: 70 mV/dB
Log Range: -66 to +5 dBm
Log Linearity: ±1.5 dB Max
Rise Time: 35 ns Max
Recovery Time: 350 ns to within 1.0 dB
Settling Time: 55 ns 10% to Final Value ±0.5 dB
Power Supply: 15 VDC @ 400 mA
-15 V @ 150 mA
Dynamic Range Log: -66 to +5 dBm
Frequency Flatness: ±2.0 dB Max @ +25 ºC
VSWR: 2.0:1 Max
Video Output: 250 to 5220 mV Typ
Video Output Drive Capability: 250 feet RG11 75 Ohm Cable
Signal Capability: 100 ns to 300 µs
Environmental Ratings:
Operating Temperature: -20 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
