| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| TSS (dBm): | -73 Typ |
|---|
| Log Slope (mV/dB): | 25 Typ |
|---|
| Log Range (dBm): | -67 to +3 |
|---|
| Log Linearity: | ±2.0 dB Max @ +25 °C,
±2.5 dB Max (-20 to +75 °C) |
|---|
| Rise Time: | 10 ns Max |
|---|
| Recovery Time: | 60 ns Max (40 ns Typ) |
|---|
| Power Supply: | +12 V @ 350 mA Typ,
-12 V @ 180 mA Typ |
|---|
| Frequency Flatness: | ±1.5 dB Max @ +25 °C |
|---|
| VSWR: | 2.0:1 Max |
|---|
| PSAT: | +10 dBm Typ |
|---|
| Pulse Range: | 30 ns to CW |
|---|
| Dynamic Range: | -67 to +3 dBm |
|---|
| Input Power: | +17 dBm CW Max |
|---|
| Delay Time: | 15 ns (5 ns Typ / 7 ns Typ over temperature) |
|---|
| Connectors: | SMA (F) |
|---|

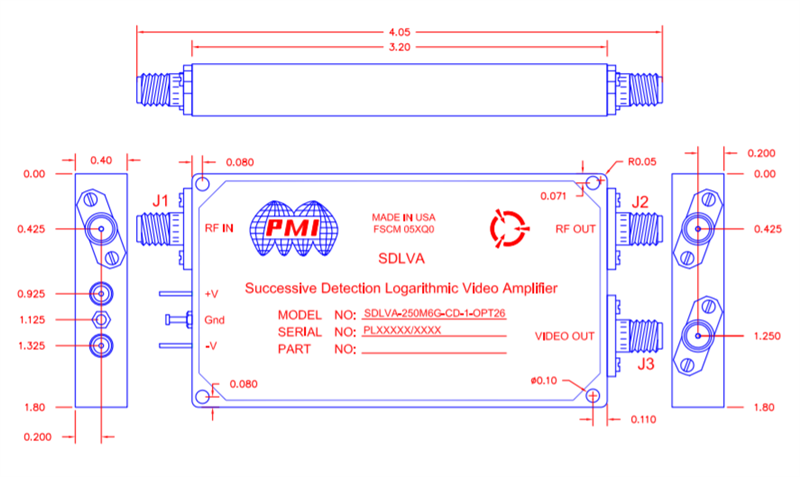

| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-810C, Method 508.2 |
|---|
