SDLVA-2G18G-50MV-100-NRF Active
Successive Detection Logarithmic Amplifier (SDLVA)
Additional Documents
- Product Feature
- 3D MODEL
- Demo - Unit Data
- PL36498 - Unit Data
- PL40046 - Unit Data
- PL40047 - Unit Data
- PL40048 - Unit Data
- PL42985 - Unit Data
- PL42986 - Unit Data
- PL44008 - Unit Data
- PL44009 - Unit Data
- PL44010 - Unit Data
- PL44011 - Unit Data
- PL44012 - Unit Data
- PL45904 - Unit Data
- PL45905 - Unit Data
- PL46337 - Unit Data
- PL46338 - Unit Data
- PL46339 - Unit Data
- PL46340 - Unit Data
- PL46341 - Unit Data
- PL46665 - Unit Data
- PL46666 - Unit Data
- PL46667 - Unit Data
- PL46668 - Unit Data
- PL46669 - Unit Data
- PL46670 - Unit Data
- PL46671 - Unit Data
- PL47289 - Unit Data
- PL47290 - Unit Data
- PL47291 - Unit Data
- PL47292 - Unit Data
- PL47293 - Unit Data
- PL47294 - Unit Data
- PL47295 - Unit Data
- PL47296 - Unit Data
- PL47297 - Unit Data
- PL47298 - Unit Data
- PL46672 - Unit Data
- PL47897 - Unit Data
- PL47898 - Unit Data
- PL47899 - Unit Data
- PL51994 - Unit Data
- PL51995 - Unit Data
- PL51996 - Unit Data
- PL51997 - Unit Data
- PL51998 - Unit Data
- PL51999 - Unit Data
- PL52621 - Unit Data
- PL52622 - Unit Data
- PL52624 - Unit Data
- PL52625 - Unit Data
- PL52626 - Unit Data
- PL59582 - Unit Data
- PL59583 - Unit Data
- PL59584 - Unit Data
- PL59585 - Unit Data
- PL59586 - Unit Data
- PL59587 - Unit Data
- PL59588 - Unit Data
- PL59589 - Unit Data

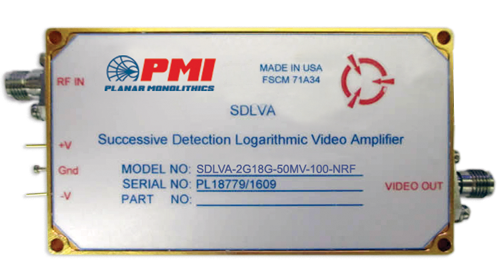

PMI Model SDLVA-2G18G-50MV-100-NRF is a successive detection logarithmic amplifier (SDLVA) designed to operate over the 2 to 18 GHz frequency range with a frequency flatness of 1.64 dB; TSS of -75 dBm; VSWR: 2.0:1; power input 17 dBm; Log Range of -67 to 5 dBm with a 50 mV/dB log slope and log linearity of 1.04 dB. This model is designed for ultra-high speed applications while maintaining flatness and accuracy. Housing size is 3.20" x 1.80" x 0.40" with SMA Female Connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| TSS (dBm): | -69 dBm Min |
| Log Slope (mV/dB): | 50 (±1.5 mV) 100 Ohm |
| Log Range (dBm): | -70 to +5 |
| Log Linearity: | ±1 dB (+25 °C) ±1.35 dB (-30 °C / +65 °C) |
| Rise Time: | 10 ns Max, 6 ns Typ |
| Fall Time: | 40 ns Typ |
| Recovery Time: | 60 ns Typ |
| Power Supply: | +15 VDC or +12 VDC @ 350 mA -15 VDC or -12 VDC @ 180 mA |
| VSWR: | 2.0:1 (RF Input) |
| Video Load (Ohms): | 100 |
| Pulse Range: | 30 ns to CW |
| Dynamic Range: | -67 to 5 dBm |
| Power Input: | 17 dBm CW Max |
| Connectors: | SMA Female |
| Size: | 3.2" x 1.8" x 0.4" |
| Sealing: | Hard Conductive Epoxy |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 2040 COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Fungus: | MIL-STD-810C, METHOD 508.2 |
| Salt Fog: | MIL-STD-202G, METHOD 101E COND. C |
