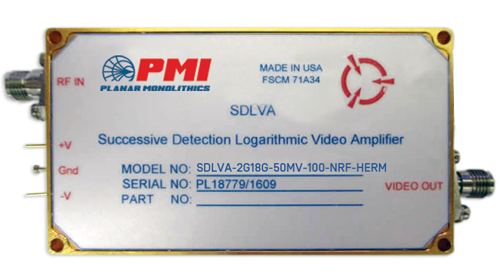

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -69 dBm Min |
|---|
| Log Slope (mV/dB): | 50 (±1.5 mV) 100 Ohm |
|---|
| Log Range (dBm): | -70 to +5 dBm |
|---|
| Log Linearity: | ± 1 dB (25 °C)
± 1.35 dB (-30 °C / +65 °C) |
|---|
| Rise Time: | 10 ns Max, 6 ns Typ |
|---|
| Fall Time: | 40 ns Typ |
|---|
| Recovery Time: | 60 ns Typ |
|---|
| Power Supply: | +15 VDC or +12 VDC @ 350 mA
-15 VDC or -12 VDC @ 180 mA |
|---|
| VSWR: | 2.0:1 (RF Input) |
|---|
| Video Load (Ohms): | 100 |
|---|
| Pulse Range: | 30 ns to CW |
|---|
| Dynamic Range: | -67 to + 5 dBm |
|---|
| Power Input: | 17 dBm CW Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Sealing: | Hermetic |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Fungus: | MIL-STD-810C, METHOD 508.2 |
|---|
| Salt Fog: | MIL-STD-202F, METHOD 107D COND. A |
|---|
