| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.025 |
|---|
| Frequency Max (GHz): | 0.035 |
|---|
| Log Slope (mV/dB): | 25 to 0 dBm Typ |
|---|
| Log Range (dBm): | -80 to 0 |
|---|
| Rise Time: | 100 ns Max |
|---|
| Power Supply: | +12 V @ 175 mA Max
-12 V @ 100 mA Max |
|---|
| VSWR: | 1.5:1 Typ (Input) |
|---|
| DC Offset: | Variation of ±50 mV |
|---|
| Dynamic Range: | -80 to 0 dBm Typ |
|---|
| Input Power: | (Operating) +13 dBm Max |
|---|
| Input VSWR: | 1.5:1 Typ |
|---|
| Limited Output Power: | 0 dBm Nom |
|---|
| Connectors: | SMA Female |
|---|

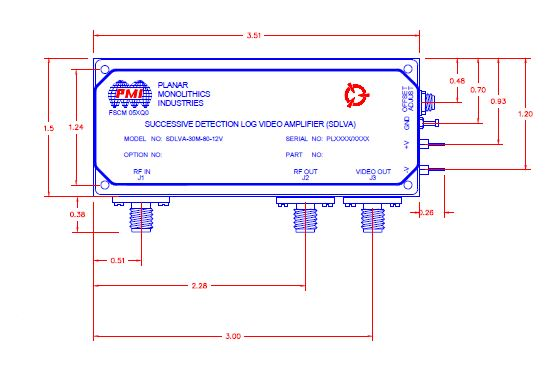

| Size: | 3.51" x 1.50" x 0.47" |
|---|
| Finish: | Blue epoxy polimide coating IAW MIL-C-22750, type I over epoxy polimide primer MIL-DTL-5022E type IV, lead and chromate free |
|---|
| Weight: | 3.0 oz Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to 85 °C |
|---|
| Non-Operating Temperature: | -65 °C to 125 °C |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
