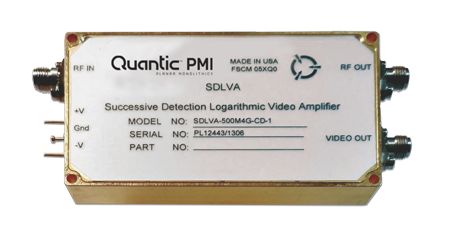

SDLVA-500M4G-CD-1 * Active
Successive Detection Log Video Amplifier (SDLVA)
Quantic PMI Model SDLVA-500M4G-CD-1 Successive Detection Log Video Amplifier (SDLVA) offers 70 dB Dynamic Range over the frequency range of 0.5 to 4 GHz. This model offers an ultra-fast rise time of 10 ns maximum, a recovery time of <60 ns and a limited RF Output of +7 dBm. The unit is temperature compensated such that log linearity over temperature remains <±2.5 dB over the full operating temperature range of -40 to +70 °C. This model is supplied in a compact housing measuring only 3.2" x 1.8" x 0.4". [Optional frequency ranges covering 0.1 to 26.5 GHz are available.]
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 4 |
| TSS (dBm): | -73 Typ, -71 Max |
| Log Slope (mV/dB): | 25 Typ, 50 Ohm Load |
| Log Range (dBm): | -70 to 0 dBm - Measured -70 to 0 dBm |
| Log Linearity: | ±2.5 dB (-40 ºC to +75 ºC) - Measured ±0.9 dB |
| Rise Time: | 10 ns (5 ns Typ) - Measured 9.1 ns |
| Recovery Time: | 60 ns (40 ns Typ) - Measured 55 ns |
| Power Supply: | +15 or +12 V @ 350 mA Nom - Measured +15 VDC @ 271 mA -15 or -12 V @ 180 mA Nom - Measured -15 VDC @ 93 mA |
| VSWR: | 2.0:1 |
| VSWR (Measured): | 2.0:1 - Measured 1.70:1 |
| Video Load (Ohms): | 50 |
| Pulse Range: | 30 ns to CW - Measured 30 ns to CW |
| DC Offset: | 50 ± 50 mV |
| Dynamic Range: | -70 to 0 dBm |
| Input Power: | +17 dBm Typ - Measured +17 dBm CW Max |
| RF Gain: | 55 dB Typ |
| Video Flatness Over Frequency: | ±50 mV Max |
| Connectors: | SMA (F) |
| Size: | 3.2" x 1.8" x 0.4 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +75 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
