SDLVA-54M66M-70dB-DUAL Preliminary
Successive Detection Logarithmic Video Amplifier (SDLVA)

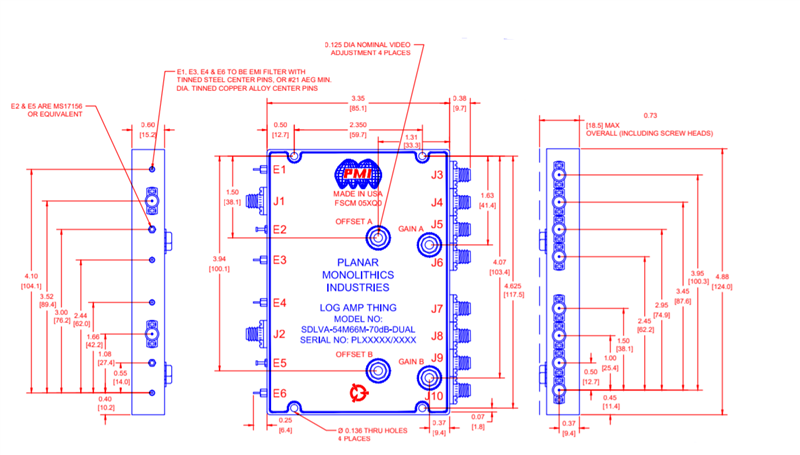

Quantic PMI Model SDLVA-54M66M-70dB-DUAL is a successive detection log video amplifier (SDLVA) that operates over the 0.054 to 0.066 GHz frequency range with a dynamic range of 70 dB and a log slope of 30 mV/dB. This model also features external slope and offset adjustment potentiometers for each channel. Package size is 3.35" x 4.88" x 0.60" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 0.054 |
| Frequency Max (GHz): | 0.066 |
| Log Range (dBm): | -75 to -5 |
| Rise Time: | 60 ns |
| Fall Time: | 120 ns |
| VSWR: | 1.2:1 Max |
| Video Bandwidth: | 10 MHz |
| Video Load (Ohms): | 100 |
| Input Power: | -75 to -5 dBm |
| Input Impedance: | 50 Ohm Nom |
| Limited IF Output: | +6 ± 1 dBm |
| Connectors: | SMA female |
| Size: | 3.35" x 4.88" x 0.60" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -15 ºC to +65 ºC (Video Output Performance Guaranteed), -54 ºC to +81 ºC Operating |
| Non-Operating Temperature: | -62 ºC to +95 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
