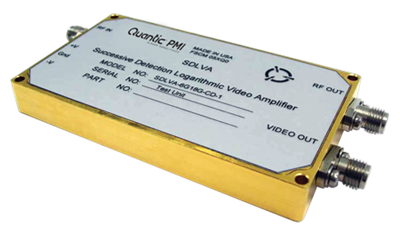

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -70 Min |
|---|
| Log Slope (mV/dB): | 25 Nom (50 Ohm Load),
48 Nom (No Load) |
|---|
| Log Range (dBm): | -70 to +5 |
|---|
| Log Linearity: | ±2.0 dB Max, ±2.5 dB Max (Over Temp) |
|---|
| Rise Time: | 10 ns Max, 5 ns Typ |
|---|
| Recovery Time: | 60 ns Max, 40 ns Typ |
|---|
| Power Supply: | +12 to +15 VDC @ 350 mA Typ
-12 to -15 VDC @ 180 mA Typ |
|---|
| Frequency Flatness: | ±2.0 dB Max @ +25 ºC |
|---|
| VSWR: | 2.0:1 Typ |
|---|
| Pulse Range: | 30 ns to CW |
|---|
| Dynamic Range: | -70 to +5 dBm |
|---|
| Input Power: | +17 dBm CW Max |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 3.2 " x 1.8 " x 0.4" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
