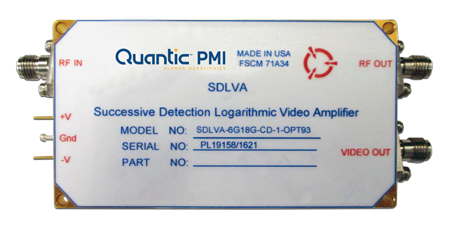

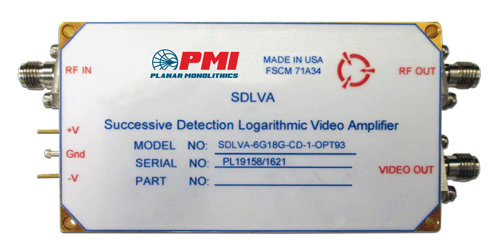

SDLVA-6G18G-CD-1-OPT93 Active
Successive Detection Log Video Amplifiers (SDLVA)
PMI Model SDLVA-6G18G-CD-1-OPT93 Successive Detection Log Video Amplifiers (SDLVA) offers 75 dB Dynamic Range over the frequency range of 6 to 18 GHz. This model offers an ultra-fast rise time of 10nsec maximum and a recovery time of <60 ns, temperature compensated such that log linearity over temperature remains <±2.5 dB over the full operating temperature range of -40 to +85 °C. Supplied in a compact housing measuring only 3.2" x 1.8" x 0.4"with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| TSS (dBm): | -70 Min |
| TSS (Measured): | -70 dB Min - Measured -75 dB |
| Log Slope (mV/dB): | 25 ±10% (93 Ohm), 48 ± 10% (No Load) |
| Log Range (dBm): | -70 to 5 |
| Log Linearity: | ±2.5 dB (-40 to +85 ºC) |
| Rise Time: | 10 ns (5 ns Typ) |
| Recovery Time: | 60 ns (40 ns Typ) |
| Power Supply: | +15 or +12 VDC @ 350 mA, -15 or -12 VDC @ 180 mA |
| Frequency Flatness: | ±2 dB Max |
| VSWR: | 2.0:1 |
| VSWR (Measured): | 2.0:1 |
| Video Load (Ohms): | 93 |
| PSAT: | 7 dBm |
| Pulse Range: | 30 ns to CW |
| Dynamic Range: | -70 to +5 dBm |
| Input Power: | 17 dBm CW Max |
| Limited IF Output: | No Power |
| Connectors: | SMA Female |
| Size: | 3.2 " x 1.8 " x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +100 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Fungus: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 204D Cond. B |
