SDLVA-70M40G-60-25 Preliminary

Successive Detection Log Video Amplifier (SDLVA)

SDLVA-70M40G-60-25
Product Feature

Quantic PMI Model SDLVA-70M40G-60-25 is a Successive Detection Log Video Amplifier (SDLVA) that operates between the 0.07 to 40 GHz frequency range with a dynamic range of 60 dB, a log slope of 25 mV/dB, and a nominal video bandwidth of 23 MHz. Designed using innovative GaAs technology which provides stunning performance and reliability in a compact package measuring 2.37" x 1.80" x 0.42" making it an optimum solution for high speed channelized receiver applications.

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): No
Frequency Min (GHz): 0.07
Frequency Max (GHz): 40
TSS (dBm): -60 dBm @ 25°C
Log Slope (mV/dB): 25 Nom
Log Range (dBm): -55 to +5
Rise Time: 15 ns (12 ns Typ)
Recovery Time: 100 ns (80 ns Typ)
Power Supply: +12 V @ 500 mA,
-12 V @ 200 mA
VSWR: 2.5:1
Video Log Linearity: ±2.0 dB @ 25°C, ±3.0 Over Temp
Video Log Slope (mV/dB): 25 mV / dB Nom
Video Freq Flatness: 2.5 dB Max @ 25 °C
PSAT: +7 dBm Nom
Pulse Range: 50 ns to CW
Dynamic Range: -55 to +5 dBm
Input Power: 10 dBm Max
Delay Time: 15 ns (5 ns Typ), 7 ns over temp Typ
RF Gain: 50 dB Nom

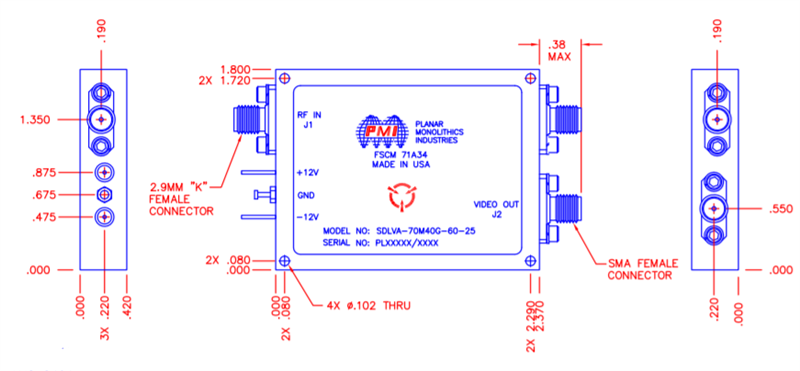

Size: 2.37" x 1.80" x 0.42"
Finish: Nickel Plate per SAE AMS 2404
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +86 ºC
Temperature Cycle: MIL-STD-202F, Method 107D, Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
