SDLVA-8G18G-40-5-SFF Active

Successive Detection Log Video Amplifier (SDLVA)

SDLVA-8G18G-40-5-SFF
  • SDLVA-8G18G-40-5-SFF
  • SDLVA-8G18G-40-5-SFF
  • SDLVA-8G18G-40-5-SFF
Product Feature

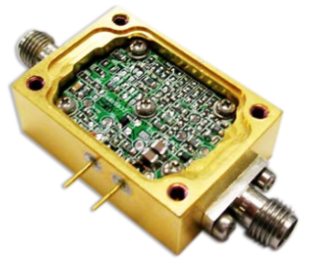

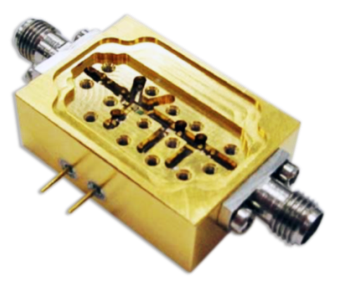

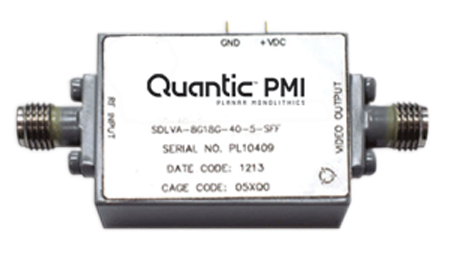

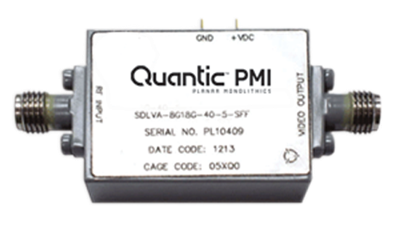

Quantic PMI Model SDLVA-8G18G-40-5-SFF is an 8-18 GHz Successive Detection Log Video Amplifier that is supplied in a ruggedized, hermetically sealed housing that measured only 1.2" x 0.85" x 0.4". This model is highly temperature compensated such that the log linearity is better than ±1 dB over the temperature range of -54 to +85 °C; has a logging range of -40 to 0 dBm with an output log video voltage of 10 mV to 2.25 V; and features a fast rise / fall time of 25 ns / 30 ns and a recovery time of less than 40 ns. This unit is listed as having an operating temperature range of -54 to +85 °C, but is designed to operate at extended temperature ranges up to +95 °C.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 8
Frequency Max (GHz): 18
TSS (dBm): -34 Typ
Log Slope (mV/dB): 50 ± 6
Log Range (dBm): -40 to 0
Log Linearity: ±1.0 dB (Pin = -30 dBm @ -54 to +85 °C) - Measured ±0.5 dB
Rise Time: 25 ns (Pin = -20 dBm @ 10% to 90%) Max - Measured 20 ns
Fall Time: 30 ns (Pin = -20 dBm @ 90% to 10%) Max - Measured 25 ns
Recovery Time: 40 ns (Pin = -20 dBm) Max - Measured 35 ns
Power Supply: +5 V ± 5% (Max Ripple 100 mV pk-pk, 20 MHz BW)
Frequency Flatness: ±2.0 dB Max - Measured ±1.3 dB
VSWR: 2.5:1 Max
VSWR (Measured): 2.5:1 Max - Measured 2.1:1
Dynamic Range: -40 to +0 dBm
Input Power: +10 dBm CW (Survival)
Log Video Maximum Output Voltage: 10 nV to 2.25 V - Measured 40 mV to 2.20 V
Log Video Output Slope: 50 mV/dB (±6. 0 mV/dB Max) - Measured 50.8 mV/dB
Connectors: SMA Female
Size: 1.20" x 0.85" x 0.40"
Sealing: Hermetic
Finish: MIL-SPEC Epoxy paint, Gray Color
Weight: 0.9 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +95 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
