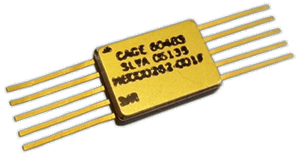

SLVAC-06135M-MA08 Active

Successive Detection Log Video Amplifier - Surface Mount

SLVAC-06135M-MA08
Product Feature
Quantic PMI Model SLVAC-06135M-MA08 is a Successive Detection Log Video Amplifier that operates over the 0.6 to 1.35 GHz range. This unit has a dynamic range of 65 to 70 dB, a TSS of -67 dBm and a nominal video bandwidth of 20 MHz.  This unit is designed using innovative GaAs technology which provides stunning performance and reliability in a compact package making it an optimum solution for high-speed channelized receiver applications. This unit offers typical fast rise time <20 ns rapid fall time <25 ns as well as superior delay time of 8 ns. The log slope is 25 mV/dB and the accuracy is less than +/- 1.0 dB over the -60 to 0 dBm power input range. Dynamic range can be extended to -65/+5 with log error of +/- 1.5 dB. Options are available with adjustable logging slope and DC offsets. Guaranteed rise times are less than 25 ns and maximum recovery times are less than 30 ns. Recovery times at lower power are faster. Sizes available are 0.75 x 0.75 x 0.135 or any other customized configuration desired. Connectorized versions are available.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.6 to 1.35 GHz
Frequency Min (GHz): 0.6
Frequency Max (GHz): 1.35
Logging Range (dBm): -65 to +5
Video Load (Ohms): 100
TSS (dBm): -70
Log Slope (mV/dB): 25
Limited IF Output: -14 dBm
Voltage &, Current: 50 mA @ +12 V,
190 mA @ -12 V
Dynamic Range: 65 dB
Log Slope Variation with Frequency: +/-0.5 mV/dB Typ (over 80 MHz RF Bandwidth)
Log Slope Variation with Temperature: +/-1 mV Typ
Log Linearity: +/-1.2 dB Max (-60 dBm to 0 dBm),
+/-0.8 dB Typ Measured +/-0.6 dB
Maximum RF Input Power: +10 dBm
Input VSWR: 1.8:1 Max (1.5:1 Typ)
Output Voltage: 2.7 V
Rise Time: 25 ns Max (15 ns Typ) - Measured 18 ns
Fall Time: 30 ns Typ - Measured 30 ns
Log Video Output Settling Time: 40 ns
Propagation Delay: 10 ns Max, 7 ns Typ
Tangential Sensitivity: -65 dBm Typ
DC Power Supply: +5 Volts @ 30 mA (No Video Load) - Measured 25 mA -5 Volts @ 170 mA - Measured 127 mA
Size: 0.395" x 0.280" x 0.090"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to 85 °C
Non-Operating: -65 °C to 100 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
