TD-1G12G-20DB-SFP Active
Threshold Detector
Additional Documents

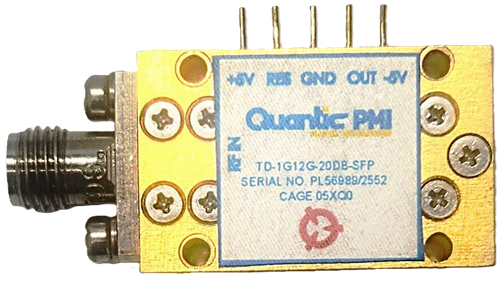

Quantic PMI Model TD-1G12G-20DB-SFP is a threshold detector designed to operate over the 1 to 12 GHz frequency range with an adjustable threshold level of -25 to -5 dBm and a VSWR of 2.0:1 maximum. This unit's housing measures 1.0" x 0.62" x 0.22" with field removable SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 12 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 12 |
| Threshold: | -25 to -5 dBm Adjustable |
| Detected Output Type: | TTL |
| VSWR: | 2.0:1 Max |
| Threshold Variation: | ±1.5 dBm |
| Output: | TTL 1: RF above threshold TTL 0: RF below threshold |
| Maximum RF Input: | +10 dBm |
| Response Time: | 50 ns Max |
| DC Voltage: | +5V @ 75 mA -5V @ 35 mA |
| RF Connectors: | SMA Female, Field Replaceable |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
