TD-1G12G-RL-CD-SFF Active
High-Speed Threshold Detector
Additional Documents
- Product Feature
- Test Report - 10/10/14
- PL24625 - Unit Data
- PL24626 - Unit Data
- PL24627 - Unit Data
- PL24628 - Unit Data
- PL26164 - Unit Data
- PL26165 - Unit Data
- PL26166 - Unit Data
- PL26167 - Unit Data
- PL26168 - Unit Data
- PL26169 - Unit Data
- PL26218 - Unit Data
- PL26219 - Unit Data
- PL26220 - Unit Data
- PL26717 - Unit Data
- PL27074 - Unit Data
- PL27074-1 - Unit Data
- PL27366 - Unit Data
- PL27367 - Unit Data
- PL27730 - Unit Data
- PL27731 - Unit Data
- PL27781 - Unit Data
- PL27782 - Unit Data
- PL27782-1 - Unit Data
- PL27783 - Unit Data
- PL27784 - Unit Data
- PL27785 - Unit Data
- PL27786 - Unit Data
- PL27787 - Unit Data
- PL27788 - Unit Data
- PL27789 - Unit Data
- PL27790 - Unit Data
- PL27791 - Unit Data
- PL34677 - Unit Data
- PL34678 - Unit Data
- PL35980 - Unit Data
- PL35981 - Unit Data
- PL35982 - Unit Data
- PL36206 - Unit Data
- PL36213 - Unit Data
- PL36214 - Unit Data
- PL36215 - Unit Data
- PL36216 - Unit Data
- PL36217 - Unit Data
- PL40616 - Unit Data
- PL40617 - Unit Data
- PL40618 - Unit Data
- PL40619 - Unit Data
- PL40620 - Unit Data
- PL40621 - Unit Data
- PL40622 - Unit Data
- PL40623 - Unit Data
- PL40624 - Unit Data
- PL40625 - Unit Data
- PL40626 - Unit Data
- PL40627 - Unit Data
- PL41206 - Unit Data
- PL41207 - Unit Data
- PL41209 - Unit Data
- PL41210 - Unit Data
- PL41211 - Unit Data
- PL41212 - Unit Data
- PL41214 - Unit Data
- PL41215 - Unit Data
- PL41216 - Unit Data
- PL41217 - Unit Data
- PL41219 - Unit Data
- PL41220 - Unit Data

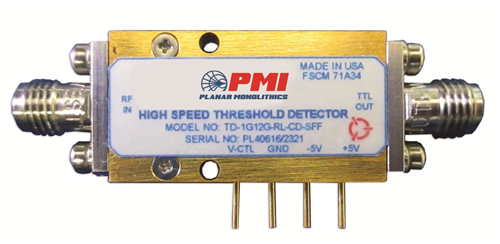

PMI Model TD-1G12G-RL-CD-SFF is a high-speed threshold detector designed to operate over the 1 to 12 GHz frequency range that has an adjustable threshold level of -30 to -10 dBm and a VSWR of 3.0:1 maximum. Package size 1.1" x 0.6" x 0.19" with field removable SMA connectors on the input and output and has active low output.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 12 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 12 |
| Threshold: | Adjustable |
| Dynamic Range (dBm): | -30 to +10 dBm |
| Detected Output Type: | TTL |
| VSWR: | 3.0:1 Typ - Measured 3.0:1 |
| Power Supply: | +5 VDC @ 100 mA, -5 VDC @ 100 mA Typ |
| Threshold Adjust Connector: | Solder Pin |
| Threshold Level: | -30 to -10 dBm |
| Threshold Variation: | ±1.5 dB Max |
| Threshold Setting Control: | External Voltage 0 to +5 VDC |
| Threshold Level Setting Range: | -30 to -10 dBm |
| Input Power: | 100 mW CW Max |
| Propagation Delay: | 10 ns Typ, 3 dB above threshold setting (50% RF Input to 50% Logic at -10 dBm) - Measured 11 ns |
| Minimum Pulse Width: | 50 ns Typ - Measured 50 ns |
| Output: | TTL "0" Input Power TTL "1" Threshold Setting |
| Maximum RF Input: | 100 mW CW Max |
| Temperature Stability: | 1 dB Typ, 3 dB Above Threshold Setting |
| RF Connectors: | SMA Female - removable |
| Size: | 1.1" x 0.6" x 0.19" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -25 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
