TD-30T-SHS-218-30DBAMP-OPT100M4G Active
Threshold Detector

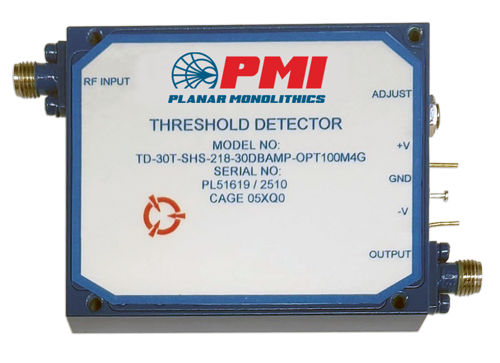

PMI Model TD-30T-SHS-218-30DBAMP-OPT100M4G is an ultra-high-speed, high sensitivity threshold detector designed for broadband applications in the 0.1 to 4 GHz frequency range and offers a TTL output logic. This miniature unit measures 2.5" x 2.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 4 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 4 |
| Propagation Delay: | 10 ns Typ 20 ns Max |
| DC Power: | +12 V @ 250 mA Max -12 V @ 120 mA Max |
| RF Input Power Level: | 18 dBm Max |
| Minimum Signal Level for Logic 1: | -45 ± 2.5 dBm |
| RF Connectors: | SMA female |
| Size: | 2.5" x 2.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ˚C to +85 ˚C |
| Non-Operating Temperature: | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
