ULPD-8-2D9G3D3G-5D6DB13D5DB-BFF-500W Preliminary
8 Way Unbalanced Loss Power Divider (ULPD)
Quantic PMI Model ULPD-8-2D9G3D3G-5D6DB13D5DB-BFF-500W is a 2.9 to 3.3 GHz, 8 Way Unbalanced Loss Power Divider (ULPD) that offers a loss range of 5.64 to 13.5 dB while maintaining 18 dB minimum of isolation with a power handling of 100 W average. Housing size is 23.62" x 3.94" x 0.59" and is outfitted with BMA & SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 8 Way |
| Frequency Range (GHz): | 2.9 to 3.3 |
| Frequency Min (GHz): | 2.9 |
| Frequency Max (GHz): | 3.3 |
| Isolation (dB): | 18 dB Min |
| Insertion Loss (dB): | -5.64 + -0.5 dB (@ J1), -6.75 + -0.5 dB (@ J2), -8.08 + -0.5 dB (@ J3), -9.2 + -0.5 dB (@ J4), -10.9 + -0.5 dB (@ J5), -12 + -0.5 dB (@ J6), -12.94 + -0.5 dB (@ J7), -13.5 + -0.5 dB (@ J8) |
| VSWR (In/Out): | 1.4:1 Max |
| Amplitude Balance: | ±0.2 dB Max |
| Phase Balance: | ±5° Max |
| Power Handling: | 0.5 kW Peak, 100 W Average |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female / BMA Female |

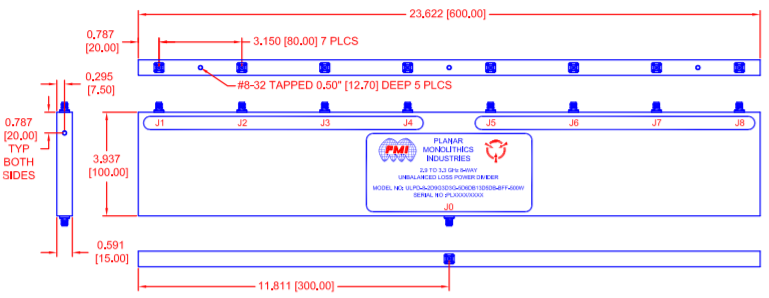

| Size: | 23.62" x 3.94" x 0.59", 600 mm x 100 mm x 15 mm |
| Finish: | Chemical Film, Yellow Class 3 per MIL-C-5541 |
| Weight: | 1.34 lbs [21.4 oz] Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
