ZBD-0R5G18G-NEG-MF-ROHS Active
Zero Bias Diode Detector
Additional Documents

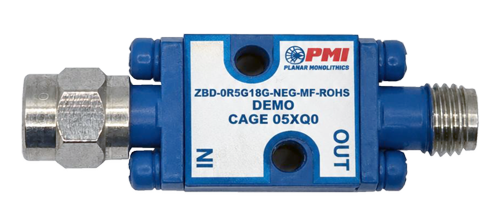

PMI Model ZBD-0R5G18G-NEG-MF-ROHS is a zero bias Schottky diode detector operating over the 0.5 to 18 GHz frequency range. Housing size is 0.5" x 0.5" x 0.22" with SMA male/female connectors. ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| VSWR: | 1.5:1 Typ 2.0:1 Max |
| Frequency Flatness (dB): | ±3.5 dB Max |
| Max Input Power: | 100 mW |
| Sensitivity: | 0.5 ± 0.05 mV/µW Typ, 1 mV/µW Max |
| Polarity: | Negative |
| Capacitance: | 30 pF Typ |
| Connectors In/Out: | SMA Male / SMA Female |
| Size: | 0.5" x 0.5" x 0.22" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
