ZBD-0R5G18G-NEG-RAD-MF-ROHS Active
Schottky Diode Detector

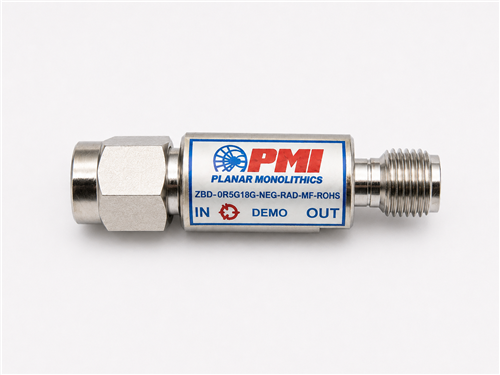

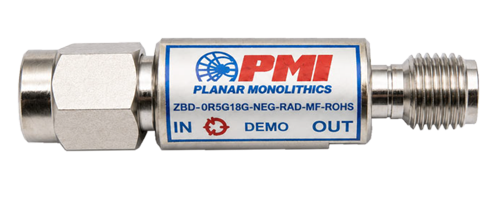

PMI Model ZBD-0R5G18G-NEG-RAD-MF-ROHS is a zero bias Schottky diode detector operating over the 0.5 to 18 GHz frequency range featuring 0.5 ± 0.05 mV/µW sensitivity, 100 mW power handling, and ±3.5 dB flatness. Package size is 1.3" x Ø0.31" with 2.92mm male/female connectors. ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| VSWR In/Out: | 1.5:1 Typ, 2.0:1 Max |
| Frequency Flatness (dB): | ±3.5 dB Max |
| Max Input Power: | 100 mW |
| Sensitivity: | 0.5 ± 0.05 mV/µW Typ |
| Polarity: | Negative |
| Capacitance: | 30 pF Typ |
| Connectors In/Out: | 2.92mm Male / Female |
| Size: | 1.3" x Ø0.31" |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
