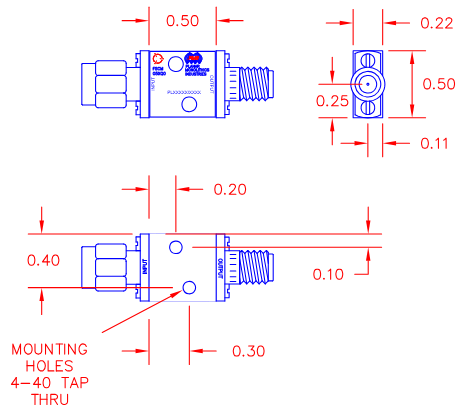

ZBD-0R5G18G-POS-MF
Preliminary
Schottky Diode Detector
PMI Model No. ZBD-0R5G18G-POS-MF is a zero bias schottky diode detector operating over the 0.5 to 18.0 GHz frequency range.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 18.0 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18.0 |
|---|
| VSWR In/Out: | 1.5:1 Max |
|---|
| Frequency Flatness (dB): | ±1.5 Max
±1.0 Typ |
|---|
| Max Input Power: | 100 mW |
|---|
| Sensitivity: | 0.5 ± 0.05 mV/µW |
|---|
| Polarity: | Positive |
|---|
| Connectors In/Out: | SMA (M)/SMA (F) |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
