Successive Detection Log Video Amplifiers (SDLVA's)
Connectorized (DLVAs, ERDLVAs, SDLVAs) | Surface Mount (SDLVA's)

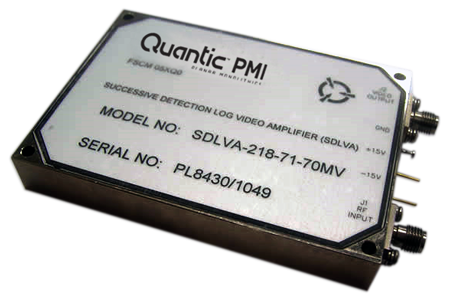

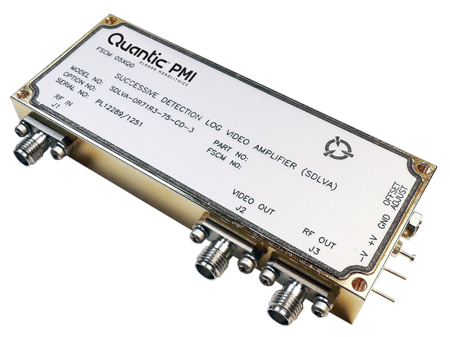

Quantic PMI offers a wide range of connectorized Detector Logarithmic Video Amplifiers (DLVA, ERDLVA, SDLVA) designs covering the DC to 40 GHz with extended range models offering dynamic ranges over 70 dB. Our standard products provide exceptional temperature stability, log linearity and frequency response. Also, most SDLVAs provide a limited IF output. Quantic PMI offers custom as well as form, fit, function DLVA’s and SDLVA’s to meet your requirements or replace obsolete products.
If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.
Features:
- DC to 40 GHz Models Available
- Excellent Frequency Response
- Excellent Log Linearity
- Limited IF Output Provided
- TSS > -68 dBm
- Fast Log Video Response Time
- Low Power Consumption
- Small Size
Options:
- Hermetic Sealing
- Custom Packages

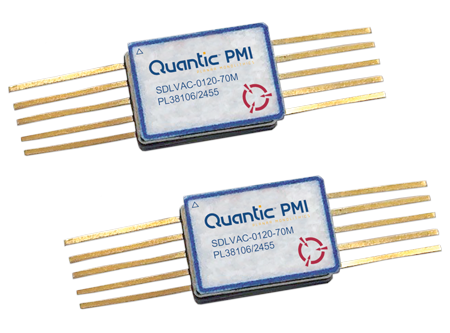

- Surface Mount or Connectorized
- Temperature Compensation
- AC and DC Coupling Available
- CW Immunity
- Matched Sets
- Military or Space Screening
Application Notes: (Click to view)
Theory of DLVA, ERDLVA and SDLVA designs
Glossary of Terms and Definitions
SDLVA Surface Mount Style Products Overview Book (7mb)
SDLVA Connectorized Style Products Overview Book (37mb)
