Quantic PMI’s new Ultra-Small CW Immune Extended Range Detector Log Video Amplifiers (ERDLVA) feature a space saving ultra-small low-profile package designed for an array of industrial and military applications such as phased array radar, passive direction-finding and channelized receivers covering the frequency range up to 40 GHz and offer dynamic ranges over 70 dB and TSS >-68 dBm to provide exceptional temperature stability, log linearity and frequency response. Form, Fit, function options offer extended dynamic range; surface mount or connectorized; digital control; hermetic sealing; and military or space screening to meet your requirements or replace obsolete products.
If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.
Features:
- Ultra-Small Size, Low Profile Package
- Extended / Custom Frequency Ranges available
- Broadband Frequency Response
- Excellent Log Linearity
- Limited IF Output Provided
- TSS > -68 dBm
- Fast Log Video Response Time
- Removable connectors for surface mount requirements
Options:
- Hermetic Sealing
- Custom Packages
- Military or Space Screening
Standard Models:
| Part Number | Frequency
Range | TSS | Log Slope) | Log Range | Package Size |
ERDLVA-2G6G-70-50MV | 2 to 6 GHz | -70 dBm @ 85 ºC | 50 ± 4.0 mV/dB | -65 to +5 dBm | 1.90" x 1.50" x 0.31"
60 mm x 38 mm x 7.9 mm |

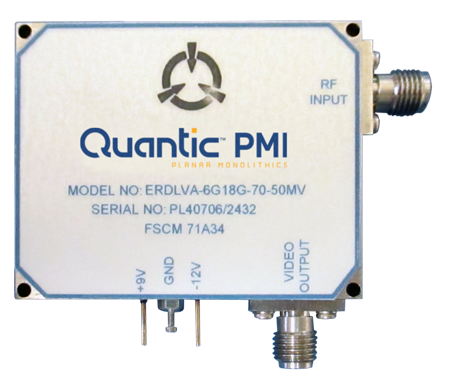

ERDLVA-6G18G-70-50MV | 6 to 18 GHz | -70 dBm @ 85 ºC | 50 ± 4.0 mV/dB | -65 to +5 dBm | 1.90" x 1.50" x 0.31"
60 mm x 38 mm x 7.9 mm |
ERDLVA-218-73-50MV | 2 to 18 GHz | -70 dBm Max | 50 ± 4.0 mV/dB | -68 to +5 dBm | 1.90" x 1.50" x 0.31"
60 mm x 38 mm x 7.9 mm |

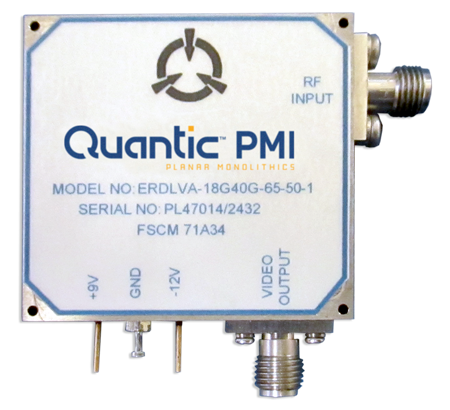

ERDLVA-18G40G-65-50-1 | 18 to 40 GHz | -68 dBm @ 85 ºC | 50 ± 4.0 mV/dB | -65 to +5 dBm | 1.60" x 1.50" x 0.31"
41 mm x 38 mm x 7.9 mm |
