Part NumberStatusFrequencyFrequency MinFrequency MaxControl SignalIsolationInsertion LossSwitching Speed

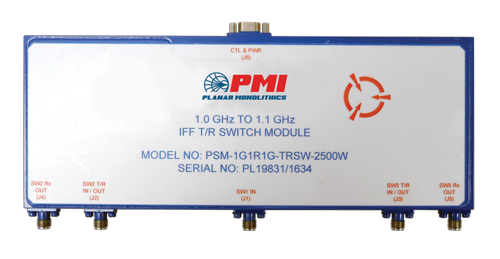

PSM-1G1R1G-TRSW-2500WActive1.0 to 1.1 GHz1 GHz1.1 GHzTTL Logic25 dB min. (J2-J3) - Measured 27.25 dB, 60 dB min. (J2-J4) - Measured 54.09 dB, 60 dB min. (J3-J5) - Measured 54.09 dB0.8 dB Typ, 1.0 dB Max. (J1-J2, Tx Mode), 0.8 dB Typ, 1.0 dB Max. (J1-J3, Tx Mode), Measured 0.81 dB, 0.6 dB Typ, 0.8 dB Max. (J2-J4, Rx Mode), 0.6 dB Typ, 0.8 dB Max. (J3-J5, Rx Mode), Measured 0.49 dB250 ns typ. (50% TTL to 10% & 90% RF), Measured 422 ns
