P8T-2G18G-60-R-SFF-QB Active
Single Pole Eight Throw Reflective Switch (SP8T)

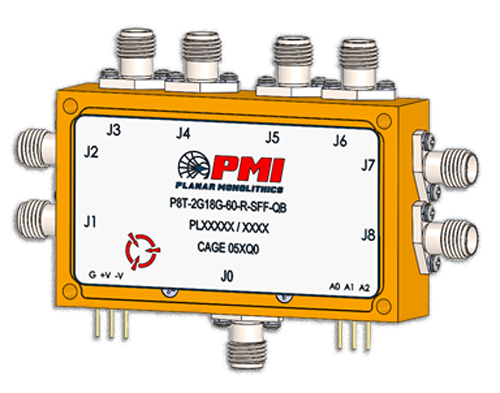

PMI Model P8T-2G18G-60-R-SFF-QB is a single pole eight throw (SP8T) switch module designed for 2 to 18 GHz frequency coverage a with an insertion loss on 5 dB, and a minimum isolation of 60 dB. This unit also handles peak input power levels up to 27 dBm and a switching speed of 50 ns. Housing size stands at 2.4" x 1.4" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 5 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 50 ns Max |
| VSWR (ON/OFF): | 2.0:1 Max |
| Operating Power: | 23 dBm CW Max |
| Power Handling: | 27 dBm CW Max |
| Control Signal: | TTL 3 Bit BCD |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| DC Supply: | +5 to +15 VDC @ 250 mA Max -5 to -15 VDC @ 150 mA Max |
| Size: | 2.4" x 1.4" x 0.5" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings:: | |
| Temperature (Operating): | -40 °C to +70 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103 COND. B |
| Shock: | MIL-STD-202, METHOD 213 COND. B |
| Vibration: | MIL-STD-202, METHOD 204 COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
