12SFB-30M6G-CD-SFF Preliminary
12-Channel Switched Filter Bank

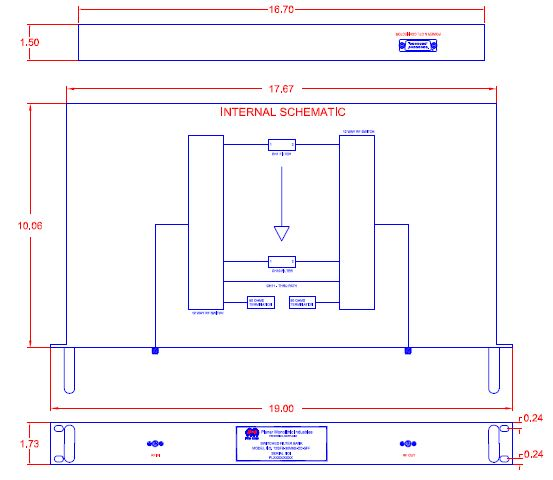

Quantic PMI Model 12SFB-30M6G-CD-SFF is a 12-Channel Switched Filter Bank offering ultra-fast switch speed, high rejection with low loss. This Quantic PMI Model is ideal for harmonic rejection and improving dynamic range during linearity testing of active devices. Housed in a 1U, 19" x 10.06" x 1.73" Rack Mount chassis with a 15 pin subminiature D connector for power/control and SMA female connectors on the front panel.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 12 |
| Operating Frequency (GHz): | 2 to 20 |
| Frequency Min (GHz): | 0.03 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 8 dB Max |
| Switching Speed: | 500 ns Max |
| Control Type: | TTL 4 bits |
| DC Voltage: | +5 VDC 750 mA Typ -15 VDC 100 mA Typ |
| VSWR: | 2.0:1 Max |
| Impedance: | 50 Ohm |
| Connectors: | RF: SMA Female Power & Control: 15 Pin Sub-D |
| Size: | 1U, 19" x 10.06" Rack Mount |
| Finish: | Blue powder coat on front panel |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to +50 °C |
| Non-Operating Temperature: | 0 °C to +50 °C |
