| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 12 |
|---|
| Operating Frequency (GHz): | 0.2 to 16 |
|---|
| Frequency Min (GHz): | 0.2 |
|---|
| Frequency Max (GHz): | 16 |
|---|
| Passband Frequency (GHz): | Channel 1 & 2: 0.167 to 0.233 GHz
Channel 3 & 4: 0.4175 to 0.5825 GHz
Channel 5 & 6: 0.668 to 0.932 GHz
Channel 7 & 8: 3.34 to 4.66 GHz
Channel 9 & 10: 8.35 to 11.65 GHz
Channel 11 & 12: 13.4 to 18.6 GHz |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 5 dB |
|---|
| Switching Speed: | 100 ns |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC/ -5 VDC |
|---|
| DC Current (mA): | 330 mA / 30 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 30 dBm CW Max |
|---|
| Rejection: | 5 Pole Response |
|---|
| Connectors: | SMA Female |
|---|

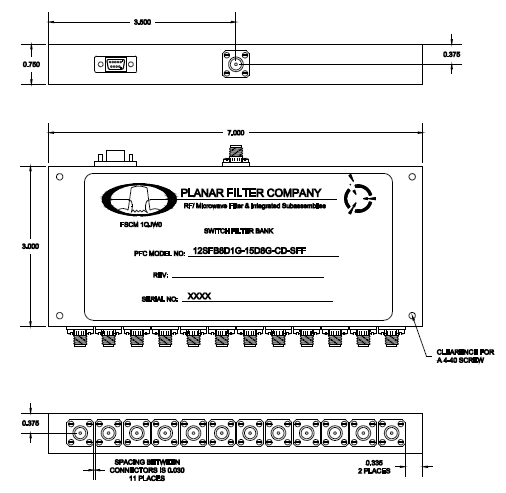

| Size: | 7.0" x 3.0" x 0.75" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
