16SFB10G-16G-CD-SFF

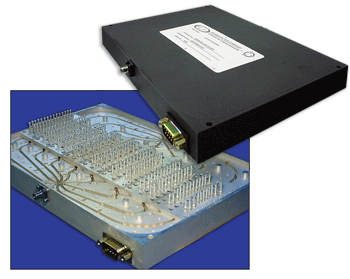

PMI Model No.16SFB10G-16G-CD-SFF is a sixteen channel switch filter bank that covers the frequency range of 2.0 to 18.0 GHz. This model includes an integral TTL driver and offers fast switching speeds of less than 2 µs. This model also handles input power levels up to +30 dBm.

Channel 1 Specifications:
Channel 1Passband1.9 to 3.1 GHz
Channel 1 Rejection

-65 dB @ 3.65 GHz & 4.85 GHz

Channel 2 Specifications:
Channel 2 Passband2.9 to 4.1 GHz
Channel 2 Rejection

-65 dB @ 4.65 GHz & 5.85 GHz

Channel 3 Specifications:
Channel 3 Passband3.9 to 5.1 GHz
Channel 3 Rejection

-65 dB @ 5.65 GHz & 6.85 GHz

Channel 4 Specifications:
Channel 4 Passband4.9 to 6.1 GHz
Channel 4 Rejection

-65 dB @ 6.65 GHz & 7.85 GHz

Channel 5 Specifications:
Channel 5 Passband5.9 to 7.1 GHz
Channel 5 Rejection

-65 dB @ 7.65 GHz & 8.85 GHz

Channel 6 Specifications:
Channel 6 Passband6.9 to 8.1 GHz
Channel 6 Rejection

-65 dB @ 8.65 GHz & 9.85 GHz

Channel 7 Specifications:
Channel 7 Passband7.9 to 9.1 GHz
Channel 7 Rejection

-65 dB @ 9.65 GHz & 10.85 GHz

Channel 8 Specifications:
Channel 8Passband8.9 to 10.1 GHz
Channel 8 Rejection

-65 dB @ 10.65 GHz & 11.85 GHz

Channel 9 Specifications:
Channel 9 Passband9.9 to 11.1 GHz
Channel 9 Rejection

-65 dB @ 11.65 GHz & 12.85 GHz

Channel 10 Specifications:
Channel 10 Passband10.9 to 12.1 GHz
Channel 10 Rejection

-65 dB @ 12.65 GHz & 13.85 GHz

Channel 11 Specifications:
Channel 11 Passband11.9 to 13.1 GHz
Channel 11 Rejection

-65 dB @ 13.65 GHz & 14.85 GHz

Channel 12 Specifications:
Channel 12 Passband12.9 to 14.1 GHz
Channel 12 Rejection

-65 dB @ 14.65 GHz & 15.85 GHz

Channel 13 Specifications:
Channel 13 Passband13.9 to 15.1 GHz
Channel 13 Rejection-65 dB @ 15.65 GHz & 16.85 GHz
Channel 14 Specifications:
Channel 14 Passband14.9 to 16.1 GHz
Channel 14 Rejection-65 dB @ 16.65 GHz & 17.85 GHz
Channel 15 Specifications:
Channel 15 Passband15.9 to 17.1 GHz
Channel 15 Rejection-65 dB @ 14.15 GHz & 15.35 GHz
Channel 16 Specifications:
Channel 16 Passband16.9 to 18.1 GHz
Channel 16 Rejection-65 dB @ 15.15 GHz & 16.35 GHz

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 16
Full Operating Frequency: 2000 to 18000 MHz
Insertion Loss: 7 dB
Switching Speed: 2 µs
Control Type: TTL
DC Voltage: 5, -15
DC Current (mA): 1500, 260
Size: 8.6" x 6.0" x 0.9"
Isolation: 60 dB Min
VSWR: 2.0:1 Max
RF Power Rating: +30 dBm CW Max
Connectors: SMA (F)
Impedance: 50 Ohms
Environmental Ratings:
Operating Temperature: -54ºC to +70 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
