3SFB-0R52R0-CD-SFF Active

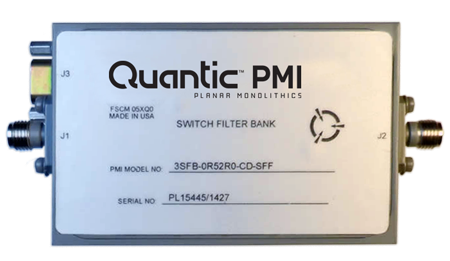

3 Channel Switch Filter Bank

Product Feature

Quantic PMI Model 3SFB-0R52R0-CD-SFF is a three-channel switch filter bank that operates over the 500 to 2000 MHz frequency range. This model includes an integral TTL driver and offers fast switching speeds of less than 200 ns.

Channel 1 Specifications:
Channel 1 Center Frequency0.65 GHz
Channel 1 Passband0.5 to 0.8 GHz
Cannel 1 Rejection

-50 dBc min. at DC to 0.2 GHz & 1.0 to 1.6 GHz

Channel 2 Specifications:
Channel 2 Center Frequency1.05 GHz
Channel 2 Passband0.8 to 1.3 GHz
Channel 2 Rejection

-50 dBc Min @ DC to 0.4 GHz & 1.6 to 4.0 GHz

Channel 3 Specifications:
Channel 3 Center Frequency1.65 GHz
Channel 3 Passband1.3 to 2.0 GHz
Channel 3 Rejection-50 dBc Min @ DC to 0.4 GHz & 2.8 to 5.0 GHz

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 3
Frequency Min: 0.5 GHz
Frequency Max: 2.0 GHz
Insertion Loss: 5 dB
Switching Speed: 200 ns
Control Type: TTL
DC Voltage: 5, -15
DC Current (mA): 120, 50
Size: 2.75" x 1.75" x 0.75"
Isolation: 60 dBc Min - Measured 88.57 dBc
VSWR: 2.0:1 Max - Measured 1.95:1
Impedance: 50 Ohms Nom
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -40 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
