3SFB-2R5G7R5G-CD-1 Active

3-Channel Switch Filter Bank

3SFB-2R5G7R5G-CD-1
Product Feature

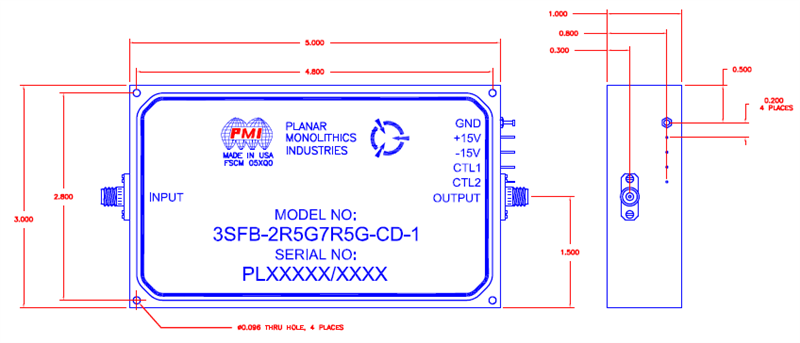

Quantic PMI Model 3SFB-2R5G7R5G-CD-1 is a 3-Channel Switch Filter Bank that operates over the frequency range of 2.5 to 7.5 GHz that has a 5.5 dB insertion loss and 55 dB of isolation. This unit is capable of handling up to 1 W (30 dBm) CW maximum.  Package size is  5.0" x 3.0" x 1.0" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 3
Operating Frequency (GHz): 2.5 to 7.5
Frequency Min (GHz): 2.5
Frequency Max (GHz): 7.5
Isolation (dB): 55 dB Typ
Insertion Loss (dB): 5.5 dB Typ
Switching Speed: 100 ns Max
Control Type: TTL, 2 Lines
DC Voltage: +15 VDC @ 200 mA Max
-15 VDC @ 200 mA Max
VSWR: 2.0:1 Typ
Impedance: 50 Ohm
Power Handling: 1 W (30 dBm) CW Max
Connectors: SMA Female - removable
Size: 5.0" x 3.0" x 1.0"
Finish: Painted Gray
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
