4ASFB-26R5G40G-20GN Preliminary
4-Channel Switch Filter Bank
Quantic PMI Model 4ASFB-26R5G40G-20GN is a 4-channel amplified switched filter bank operating over the 26.5 to 40 GHz frequency range with a 1 MHz to 26.5 GHz thru path that features switching speed of 30 ns, rejection of 60 dB from DC to 50 GHz, gain of 20 dB and a P1dB of 20 dBm. Housing measures 3.0" x 2.0" x 0.5" with a 9 Pin Micro-D connector for power/control and 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 4 |
| Operating Frequency (GHz): | 26.5 to 40 GHz |
| Frequency Min (GHz): | 26.5 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 70 dB Min |
| Insertion Loss (dB): | 25 dB Max |
| Switching Speed: | 30 ns |
| Control Type: | TTL |
| DC Voltage: | +12 VDC / -12 VDC |
| DC Current (mA): | 500 mA / 100 mA |
| VSWR: | 1.5:1 Max |
| Gain: | 20 dB Min |
| Output 2nd Harmonic: | 30 dBc @ 10 GHz (10 dBm POUT) 20 dBc @ 20 GHz (10 dBm POUT) |
| Connectors: | RF: 2.92mm Female Power & Control: 9 Pin Micro-D |

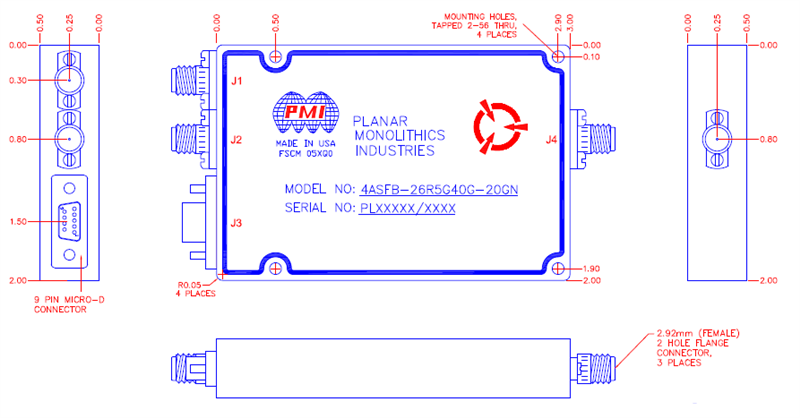

| Size: | 3.0" x 2.0" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ºC to 50 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
