4SFB-0R5G4R5G-SFF Preliminary
4-Channel Switch Filter Bank
Quantic PMI Model 4SFB-0R5G4R5G-SFF is a 4-Channel switched filter bank that operates over the frequency range of 0.5 to 4.5 GHz that has a maximum insertion loss of 5 dB and a minimum isolation of 60 dB. Package size is 3.6" x 2.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 4 |
| Operating Frequency (GHz): | 0.5 to 4.5 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 4.5 |
| Isolation (dB): | 60 dB Min |
| Insertion Loss (dB): | 5 dB Max |
| Switching Speed: | 100 ns Max |
| Control Type: | TTL |
| DC Voltage: | +5 VDC @ 100 mA Typ -11 VDC @ 50 mA Typ |
| VSWR: | 1.8:1 Max |
| Impedance: | 50 Ohm |
| Input Power: | 1 W Max (CW) 50 W Max (Peak) |
| Connectors: | SMA Female |

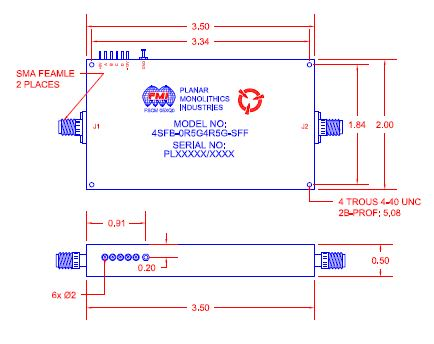

| Size: | 3.6" x 2.0" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +110 °C |
