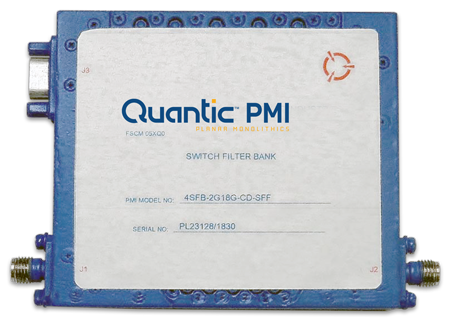

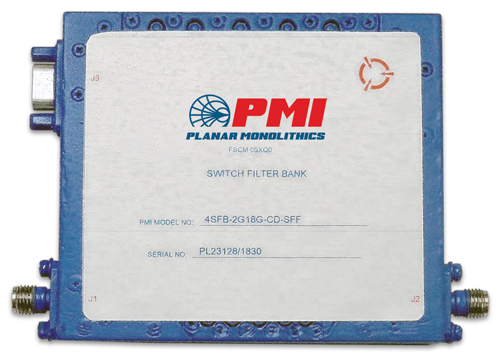

| General Parameters: |
|---|
| Status: | Active |
|---|
| No of Filter Channels: | 4 |
|---|
| Operating Frequency (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Center Frequency (GHz): | Channel 1: 2.75 GHz
Channel 2: 4.75 GHz
Channel 3: 8.2 GHz
Channel 4: 9.4 GHz
Channel 5: 14.2 GHz |
|---|
| Passband Frequency (GHz): | Channel 1: 2 to 3.5 GHz
Channel 2: 3.5 to 6 GHz
Channel 3: 6 to 10.4 GHz
Channel 4: 10.4 to 18 GHz |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 5 dB Typ,
8 dB Max |
|---|
| Switching Speed: | 200 ns |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC / -15 VDC |
|---|
| DC Current (mA): | 115 mA / 115 mA |
|---|
| VSWR: | 2.0:1 Typ, 3.0:1 Max |
|---|
| RF Power Rating: | 27 dBm CW Max |
|---|
| Rejection: | Channel 1: -50 dBc Min at DC to 0.4 GHz & 4 to 7 GHz
Channel 2: -50 dBc Min @ DC to 0.4 GHz & 7 to 12 GHz
Channel 3: -50 dBc Min @ DC to 0.4 GHz & 12 to 18 GHz
Channel 4: Not Specified |
|---|
| Connectors: | RF: SMA Female
Power & Control: 9 Pin Micro-D |
|---|
| Size: | 3.0" x 2.6" x 0.75" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
