| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 4 |
|---|
| Operating Frequency (GHz): | 2 to 6 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 1 dB |
|---|
| Switching Speed: | 100 ns |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +12 VDC / -12 VDC |
|---|
| DC Current (mA): | 400 mA / 200 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Input Power: | 24 dBm (P1dB: 18 dBm) |
|---|
| Connectors: | RF: SMA Female - removable
Power & Control: 15 Socket Micro-D |
|---|

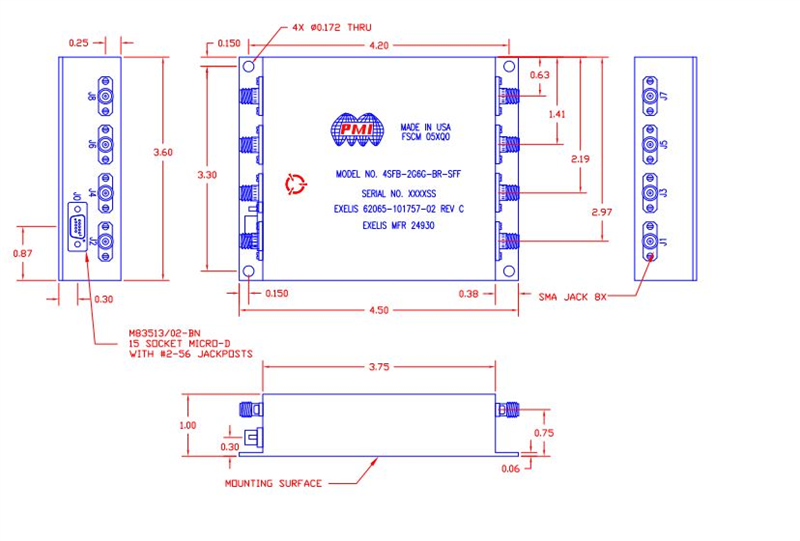

| Size: | 4.5" x 3.6" x 1.0" |
|---|
| Weight: | 16oz max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -30 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Humidity: | MIL-STD-810, Method 507.4 to 100% R.H. |
|---|
| Shock: | The unit shall provide specified operational performance after being subjected to shock level of 80G, 10ms in operating or non-operating condition when tested in accordance with MIL-S-901D, Grade A |
|---|
| Vibration: | Random - 0.30G2/HZ from 15Hz to 2000Hz, decreasing at 6dB per octave starting at 66Hz per MIL-STD-810, Method 514.5, Table II and Figure 9 and 516.5, Table 1 |
|---|
| Altitude: | MIL-STD-810, Method 500.4 Procedure 1 |
|---|
