4SFB-2G6G-CD-5-N12-SFF Active

4-Channel Switch Filter Bank

4SFB-2G6G-CD-5-N12-SFF
Product Feature

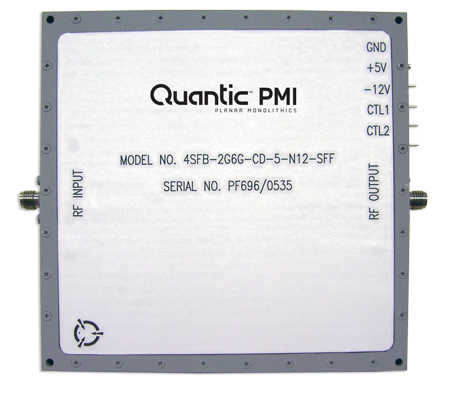

Quantic PMI Model 4SFB-2G6G-CD-5-N12-SFF is a 4-channel switch filter bank that has four filter channels centered at 2.5 GHz, 3.5 GHz, 4.5 GHz and 5.5 GHz respectively. Each filter channel offers a bandwidth of 1 GHz. This model includes an integral TTL driver and offers fast switching speeds of <2 µs. Package size is 4.33" x 4.33" x 0.787" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 4
Operating Frequency (GHz): 2 to 6
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Center Frequency (GHz): Channel 1: 2.5 GHz
Channel 2: 3.5 GHz
Channel 3: 4.5 GHz
Channel 4: 5.5 GHz
3 dB Bandwidth (GHz): 1 GHz
Insertion Loss (dB): 5 dB
Switching Speed: 2 µs
Control Type: TTL
DC Voltage: +5 VDC / -12 VDC
DC Current (mA): 200 mA / 200 mA
VSWR: 2.0:1 Max
Rejection: -60 dBc Min @ 15% of the Corner Frequencies
Connectors: SMA Female - removable
Size: 4.33" x 4.33" x 0.787"
Finish: Gray Epoxy Paint
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
