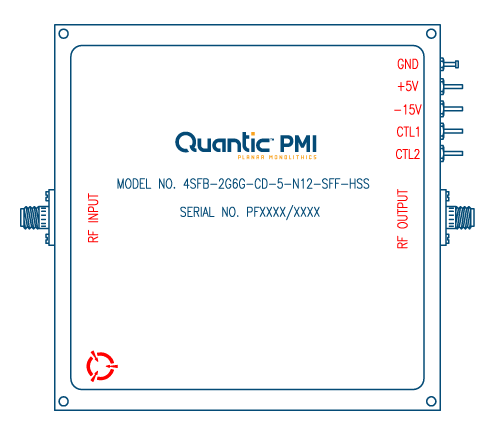

4SFB-2G6G-CD-5-N12-SFF-HSS

Model 4SFB-2G6G-CD-5-N12-SFF-HSS is a a four channel switched filter bank. This model has four filter channels centered at 2.5GHz, 3.5GHz, 4.5GHz and 5.5GHz respectively. Each filter channel offers a bandwidth of 1.0GHz. This model includes an integral TTL driver and offers fast switching speeds of less than 100nsec.

Channel 1 Specifications:
Channel 1Center Frequency2.5GHz
Channel 1 -3dB Bandwidth1.0GHz
Cannel 1 Rejection

-60dBc min. @ 15% of the Corner Frequencies

Channel 2 Specifications:
Channel 2 Center Frequency3.5GHz
Channel 2 -3dB Bandwidth1.0GHz
Channel 2 Rejection

-60dBc min. @ 15% of the Corner Frequencies

Channel 3 Specifications:
Channel 3 Center Frequency4.5GHz
Channel 3 -3dB Bandwidth1.0GHz
Channel 3 Rejection

-60dBc min. @ 15% of the Corner Frequencies

Channel 4 Specifications:
Channel 4 Center Frequency5.5GHz
Channel 4 -3dB Bandwidth1.0GHz
Channel 4 Rejection

-60dBc min. @ 15% of the Corner Frequencies

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 4
Full Operating Frequency: 2000 - 6000 MHz
Insertion Loss: 5 dB
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: 5, -15
DC Current (mA): 200, 200
Size: 4.33" x 4.33" x 0.787"
Isolation: 60dB min.
VSWR: 2.0:1 max.
Connectors: SMA(F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
