4SFB-6G18G-BR-SFF Preliminary

4-Channel Switch Filter Bank

4SFB-6G18G-BR-SFF
Product Feature

Quantic PMI Model 4SFB-6G18G-BR-SFF is a 4 independent channel switched notch filter bank with each channel containing a band stop filter and switched RF bypass. Overall passband is 6 to 18 GHz. The four filters are identical and are gang switched by a single control line, maximum input power is 24 dBm and the input P1dB point is 18 dBm. Package size is 4.5" x 3.6" x 1.0" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 4
Operating Frequency (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Isolation (dB): 60 dB Min
Insertion Loss (dB): 1 dB
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: +12 VDC / -12 VDC
DC Current (mA): 400 mA / 200 mA
VSWR: 2.0:1 Max
Impedance: 50 Ohm
Connectors: RF: SMA Female - removable
Power & Control: 15 Pin Micro-D (MB3513/02-BN)

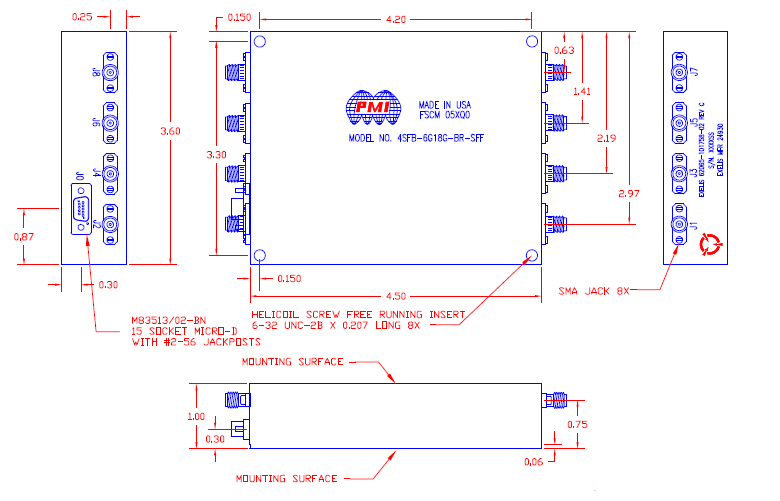

Size: 4.5" x 3.6" x 1.0"
Finish: Blue Epoxy Polimide Coating IAW
Weight: 16 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -30 ºC to +75 ºC
Non-Operating Temperature: -54 ºC to +85 ºC
Humidity: MIL-STD-810, Method 507.4 to 100% R.H.
Shock: The unit shall provide specified operational performance after being subjected to shock level of 80G
Vibration: Random - 0.30G2/HZ from 15Hz to 2000Hz, decreasing at 6dB per octave starting at 66Hz per MIL-STD-81
Altitude: MIL-STD-810, Method 500.4 Procedure 1
