4SFB-DC22G-CD-SFF Preliminary

4-Channel Switch Filter Bank

4SFB-DC22G-CD-SFF
Product Feature

Quantic PMI Model 4SFB-DC22G-CD-SFF is a 4 Channel Switch Filter Bank that operates over the DC to 22 GHz frequency range that offers fast switching speeds of<500 ns while maintaining a maximum insertion loss of 7 dB.  Package size is 3.0" x 2.6" x 0.75" with 9 Pin Micro-D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 4
Operating Frequency (GHz): DC to 22
Frequency Min (GHz): DC
Frequency Max (GHz): 22
Isolation (dB): 60 dB Min
Insertion Loss (dB): 7 dB
Switching Speed: 500 ns
Control Type: TTL
DC Voltage: +5 VDC / -15 VDC
DC Current (mA): 150 mA / 100 mA
VSWR: 1.5:1, 2.5:1 Max
Impedance: 50 Ohm
Connectors: RF: SMA Female - removable
Power & Control: 9 Pin MIcro-D

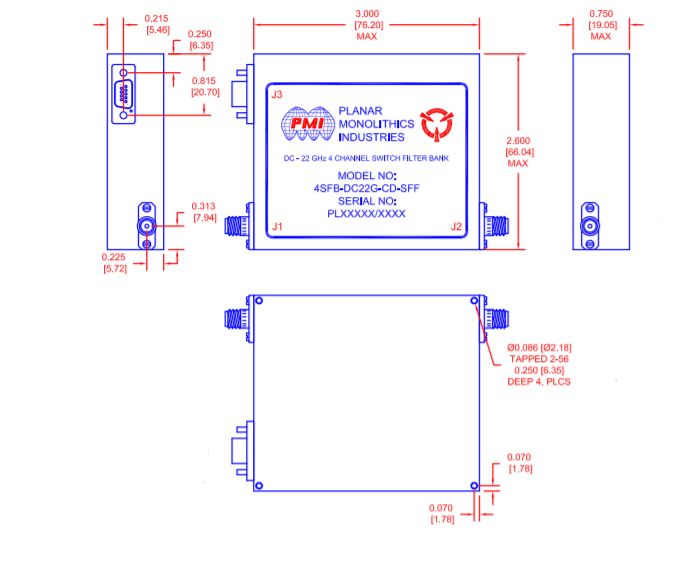

Size: 3.00" x 2.60" x 0.75"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
