5BRF-781M2600M-NFF Preliminary

5-Channel Switch Filter Bank

5BRF-781M2600M-NFF
Product Feature

Quantic PMI Model 5BRF-781M2600M-NFF is a 5 Channel Switched Band-Reject Filter Assembly designed to reject unwanted signals when performing various measurements.  The selectable band reject frequencies are 0.791 to 82 GHz (LTE), 925.2-960MHz (GSM-UMTS), 1.81 to 1.88 GHz (UMTS) and 2.55 to 2.6 GHz (LTE).  The switching is done via TTL control, and the unit operates on +5 & +12 VDC. Package size is 16.0" x 8.5" x 2.25" with 15 Pin Micro-D connector for power/control with Type N female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 5
Operating Frequency (GHz): 0.08 to 6
Frequency Min (GHz): 0.08
Frequency Max (GHz): 6
Passband Frequency (GHz): Filter Path 1:
Lower Passband: 0.08 to 0.69 GHz
Upper Passband: 0.925 to 6 GHz

Filter Path 2:
Lower Passband: 0.08 to 0.91 GHz
Upper Passband: 0.975 to 6 GHz

Filter Path 3:
Lower Passband: 0.08 to 0.175 GHz
Upper Passband: 2.1 to 6 GHz

Filter Path 4:
Lower Passband: 0.08 to 0.19 GHz
Upper Passband: 2.2 to 6 GHz

Filter Path 5:
Lower Passband: 0.08 to 0.25 GHz
Upper Passband: 2.65 to 6 GHz
Isolation (dB): 5 dB (Lower Passband)
6 dB (Upper Passband)
Switching Speed: 200 ns
Control Type: TTL
DC Voltage: +5 VDC / -12 VDC
DC Current (mA): TBD
VSWR: 2.0:1 Typ
RF Power Rating: 30 dBm CW Max
Rejection: Filter Path 1: -40 dB Min
Filter Path 2: -65 dB Min
Filter Path 3: -50 dB Min
Filter Path 4: -50 dB Min
Filter Path 5: -65 dB Min
Rejection Frequency: Filter Path 1: 0.781 to 0.821 GHz
Filter Path 2: 0.925 to 0.96 GHz
Filter Path 3: 1.81 to 1.88 GHz
Filter Path 4: 2.11 to 2.17 GHz
Filter Path 5: 2.55 to 2.6 GHz
Connectors: RF: Type N Female
Power & Control: 15 Pin Micro-D

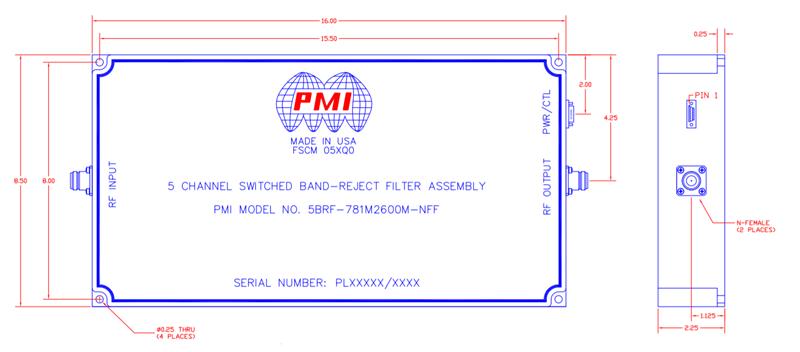

Size: 16.0" x 8.5" x 2.25"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: +20 ºC to +70 ºC
Non-Operating Temperature: -40 ºC to +85 ºC
