5SFB-0D42D2-CD-SFF Preliminary
5-Channel Switch Filter Bank

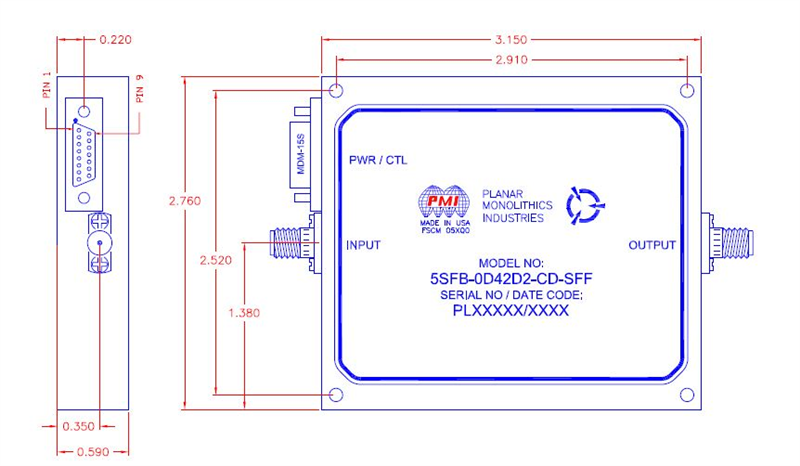

Quantic PMI Model 5SFB-0D42D2-CD-SFF is a 5-channel switch filter bank that operates over the frequency range of 0.4 GHz to 2.2 GHz with 4.5 dB insertion loss, 60 dB of isolation and capable of handling up to 0.5 W (27 dBm) CW maximum. Package size is 3.15" x 2.76" 0.59" with a 15 Pin micro-D connector for power/control and SMA female connector.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 5 |
| Operating Frequency (GHz): | 0.4 to 2.2 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 2.2 |
| Isolation (dB): | 60 dB Min |
| Insertion Loss (dB): | 4.5 dB Max |
| Switching Speed: | 200 ns Max |
| Control Type: | TTL, 5 Lines |
| DC Voltage: | +5 VDC @ 400 mA Max -5 VDC @ 100 mA Max |
| VSWR: | 1.8:1 Max |
| Impedance: | 50 Ohm |
| Power Handling: | 0.5 W (27 dBm) CW Max |
| Connectors: | RF: SMA Female Power & Control: 15 Pin Micro-D |
| Size: | 3.15" x 2.76" 0.59" |
| Finish: | Blue epoxy polyimide coating IAW MIL-C-22750, Type I over epoxy polyimide primer IAW MIL-P-23377, Type I, Class 1 or 3 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to + 75 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
