5SFB-100M1G-CD-1 Active

5-Channel Switch Filter Bank

5SFB-100M1G-CD-1
Product Feature

Quantic PMI Model 5SFB-100M1G-CD-1 is a 5-Channel Switch Filter Bank that operates over the frequency range of 0.1 to 1 GHz with a 6 dB insertion loss and 55 dB of isolation. This unit is capable of handling up to 1 W (30 dBm) CW maximum. Package size is 5.0" x 3.0" x 1.0" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 5
Operating Frequency (GHz): 0.1 to 1
Frequency Min (GHz): 0.1
Frequency Max (GHz): 1
Isolation (dB): 55 dB Typ
Insertion Loss (dB): 6 dB
Switching Speed: 100 ns Max
Control Type: TTL, 3 Lines
DC Voltage: +15 VDC @ 200 mA Max
-15 VDC @ 200 mA Max
VSWR: 2.0:1 Typ
Impedance: 50 Ohm
Power Handling: 1 W (30 dBm) CW Max
Connectors: SMA Female - removable

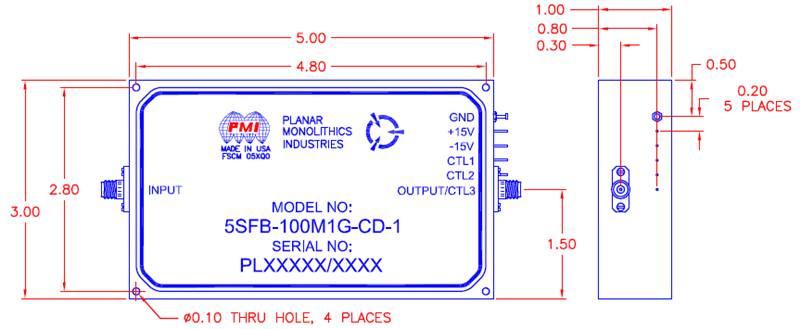

Size: 5.0" x 3.0" x 1.0"
Finish: Painted Gray
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
