| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 5 |
|---|
| Operating Frequency (GHz): | 1 to 18 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 2 dB Max |
|---|
| Switching Speed: | 200 ns Max |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +12 VDC @ 800 mA Typ
-12 VDC @ 200 mA Typ |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Gain: | 20 ± 1.5 dB (All channels) |
|---|
| Power Handling: | 0.5 W (27 dBm) CW Max |
|---|
| Connectors: | RF: SMA Female
Control: 15 Pin Micro-D |
|---|

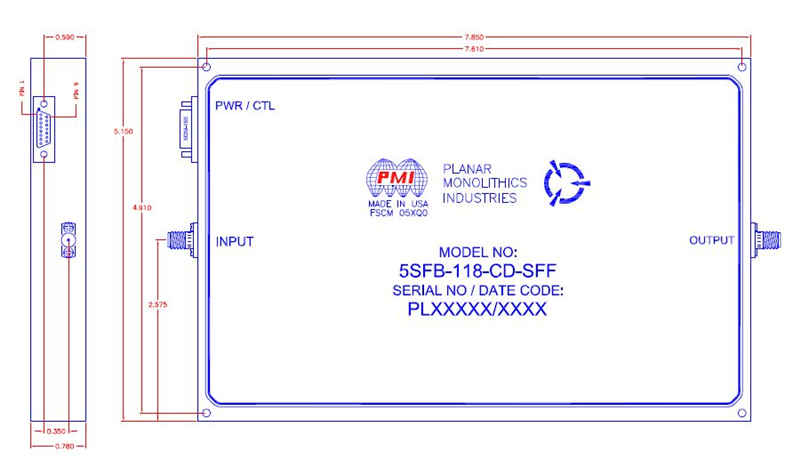

| Size: | 7.85" x 5.15" x 0.78" |
|---|
| Finish: | Blue epoxy polyimide coating IAW MIL-C-22750, Type I over epoxy polyimide primer IAW MIL-P-23377, TYPE I, Class 1 or 3 |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-2O2F, METHOD 1O3B COND. B |
|---|
| Shock: | MIL-STD-2O2F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-2O2F, METHOD 2O4D COND. B |
|---|
| Altitude: | MIL-STD-2O2F, METHOD 1O5C COND. B |
|---|
| Temperature Cycle: | MIL-STD-2O2F, METHOD 1O7D COND. A |
|---|
