5SFB-2R5G7R5G-CD-1 Active
5-Channel Switch Filter Bank

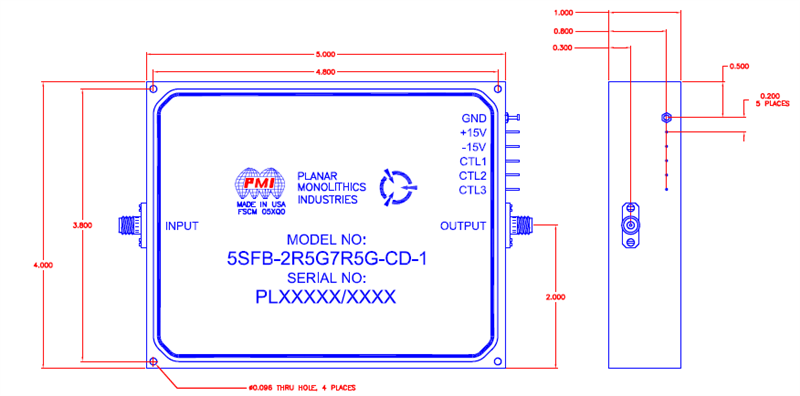

Quantic PMI Model 5SFB-2R5G7R5G-CD-1 is a 5-Channel Switch Filter Bank that operates over the frequency range of 2.5 to 7.5 GHz with 6.5 dB insertion loss and 55 dB of isolation. This unit is capable of handling up to 1 W (30 dBm) CW maximum. Package size is 5.0" x 4.0" x 1.0" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No of Filter Channels: | 5 |
| Operating Frequency (GHz): | 2.5 to 7.5 |
| Frequency Min (GHz): | 2.5 |
| Frequency Max (GHz): | 7.5 |
| Isolation (dB): | 55 dB Typ |
| Insertion Loss (dB): | 6.5 dB Typ |
| Switching Speed: | 100 ns Max |
| Control Type: | TTL, 3 Lines |
| DC Voltage: | +15 VDC @ 200 mA Max -15 VDC @ 200 mA Max |
| VSWR: | 2.0:1 Typ |
| Impedance: | 50 Ohm |
| Power Handling: | 1 W (30 dBm) CW Max |
| Connectors: | SMA Female - removable |
| Size: | 5.0" x 4.0" x 1.0" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65°C to +125°C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
