5SFB-DC26G-CD-SFF Active

5-Channel Switch Filter Bank

5SFB-DC26G-CD-SFF
Product Feature

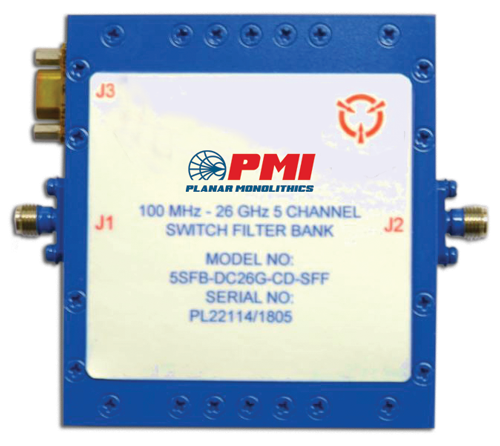

PMI Model 5SFB-DC26G-CD-SFF is a 5 Channel Switch Filter Bank that operates over the 0.1 to 26 GHz frequency range that offers fast switching speeds of <500 ns while maintaining a maximum insertion loss of 10 dB. Package size is 2.7” x 3.0” x 0.75” with a 9 Pin Micro-D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 5
Operating Frequency (GHz): 0.1 to 26
Frequency Min (GHz): 0.1
Frequency Max (GHz): 26
Isolation (dB): 60 dB Min
Insertion Loss (dB): 10 dB
Switching Speed: 500 ns
Control Type: TTL
DC Voltage: +5 VDC / -15 VDC
DC Current (mA): 150 mA / 100 mA
VSWR: 1.5:1, 2.5:1 Max
RF Power Rating: 20 dBm Max
Impedance: 50 Ohm
Connectors: RF: SMA Female - removable
Power & Control: 9 Pin Micro-D
Size: 2.70” x 3.00” x 0.75”
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
