6SFB-100M18G-1MP-MAH Active

Receive Switched Filter Bank

6SFB-100M18G-1MP-MAH
  • 6SFB-100M18G-1MP-MAH
  • 6SFB-100M18G-1MP-MAH
  • 6SFB-100M18G-1MP-MAH
Product Feature

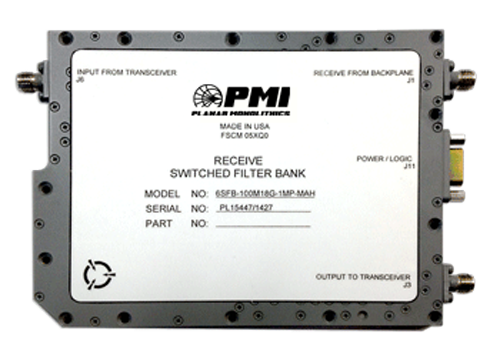

Quantic PMI Model 6SFB-100M18G-1MP-MAH is a Receive Switched Filter Bank operating over the frequency range of 0.1 to 18 GHz that incorporates a 2-Way, absorptive switch to select an input along with two 6-Way switches allowing one of the six filter paths to be chosen. This unit provides 6 dB of gain typically with a typical output of P1dB of 15 dBm. The filter channels are centered at 3.4, 5.4, 7.4, 9.4 and 11.4 GHz with 2 GHz bandwidths. The switching speed is better than 100 ns and the filters are easily customizable to meet any other requirements. Other gain requirements can be offered, and the unit will accept 3.3 V or 5 V TTL controls. The +3.3 V supply is optional. Housing measures 4.925" x 3.68" x 0.35" with a 15 pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 5
Operating Frequency (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Center Frequency (GHz): Channel 1: 3.4 GHz
Channel 2: 5.4 GHz
Channel 3: 7.4 GHz
Channel 4: 9.4 GHz
Channel 5: 11.4 GHz
Channel 6: Through Path
3 dB Bandwidth (GHz): 2 GHz
Isolation (dB): 100 dB Typ (J1, J6)
Switching Speed: 100 ns
Control Type: TTL
Input Power: -80 to -10 dBm (J1, J6)
Rejection: Channel 1: -40 dBc @ 0.1 to 2 GHz, 30 dBc Min
-40 dBc @ 4.8 to 8.5 GHz, 30 dBc Min

Channel 2: -40 dBc @ 0.1 to 4 GHz, 30 dBc Min,
-40 dBc @ 6.8 to 13.5 GHz, 30 dBc Min

Channel 3: -40 dBc @ 0.1 to 6 GHz, 30 dBc Min
-40 dBc @ 8.8 to 18 GHz, 30 dBc Min

Channel 4: -40 dBc @ 0.1 to 8 GHz, 30 dBc Min
-40 dBc (10.8 to 18 GHz, 30 dBc Min

Channel 5: -40 dBc @ 0.1 to 10 GHz, 30 dBc Min
-40 dBc @ 12.8 to 18 GHz, 30 dBc Min

Channel 6: Through Path
Gain: 18 dB Typ (J2 to J3)
-10 dB Typ (J6 to J3)
Output P1dB: -62 to +8 dBm (J3)
Connectors: RF: SMA Female
Power & Control: 15 Pin Micro-D
Size: 4.925" x 3.68" x 0.35"
Finish: Painted Gray
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
