6SFB-100M18G-1MP-MAH-TX

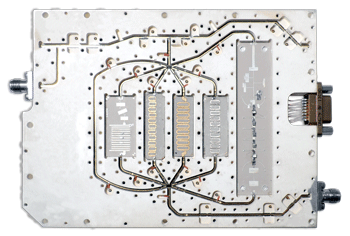

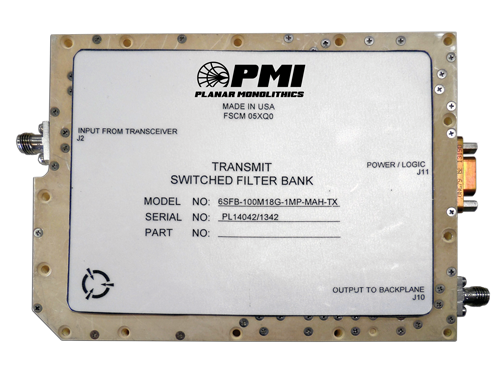

PMI Model No. 6SFB-100M18G-1MP-MAH-TX is a Transmit Switched Filter Bank operating over the frequency range of 100 MHz to 18.0 GHz. This unit incorporates two 6-way switches allowing one of six filter paths to be chosen. This unit provides 35 dB of gain typically with a typical output of P1dB of +15 dBm. The filter channels are centered at 3.4, 5.4, 7.4, 9.4 and 11.4 GHz with 2 GHz bandwidths. The switching speed is better than 100ns and the filters are easily customizable to meet any other requirements. Other gain requirements can be offered and the unit will accept 3.3 V or 5 V TTL controls. The +3.3 V supply is optional. The housing measures 4.925" x 3.68" x 0.35"

Channel 1 Center Frequency3.4 GHz
          3dB Bandwidth2.0 GHz
          Rejection

-40 dBc (100 MHz to 2 GHz)

-40 dBc (4.8 to 8.5 GHz)

     Channel 2 Center Frequency5.4 GHz
          3dB Bandwidth2.0 GHz
          Rejection

-40 dBc (100 MHz to 4 GHz)

-40 dBc (6.8 to 13.5 GHz)

     Channel 3 Center Frequency7.4 GHz
          3dB Bandwidth2.0 GHz
          Rejection

-40 dBc (100 MHz to 6 GHz)

-40 dBc (8.8 to 18 GHz)

     Channel 4 Center Frequency9.4 GHz
          3dB Bandwidth2.0 GHz
          Rejection

-40 dBc (100 MHz to 8 GHz)

-40 dBc (10.8 to 18 GHz)

     Channel 5 Center Frequency11.4 GHz
          3dB Bandwidth2.0 GHz
          Rejection

-40 dBc (10 0MHz to 10 GHz)

-40 dBc (12.8 to 18 GHz)

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 5
Full Operating Frequency: 100 MHz - 18000 MHz
Insertion Loss: TBD
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: -1, 5, 3.3
DC Current (mA): TBD
Size: 4.925" x 3.68" x 0.35"
Connectors: SMA (F)
Finish: Painted Gray
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
