6SFB-1G20G-LP-SFF-MS

6-Channel Switch Filter Bank

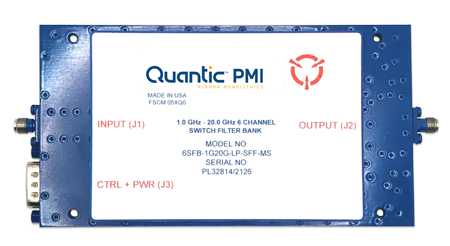

PMI Model No. 6SFB-1G20G-LP-SFF-MS is a Six Channel Switch Filter Bank that operates over the 1.0 to 20.0 GHz frequency range. It has a maximum insertion loss of 8.0 dB and a typical switching speed of 200 ns. Additionally, the Switch Filter Bank has a typical rejection of 50 dBc and a maximum operating power handling of +27 dBm. This model is outfitted with SMA female connectors in a housing measuring 5.50" x 3.00" x 0.67".

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 6
Frequency Min: 1.0 GHz
Frequency Max: 20.0 GHz
Insertion Loss: 8 dB Max
Switching Speed: 200 ns Typ
Control Type: TTL Compatible, 3 Bits Decoded
DC Voltage: +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
DC Current (mA): +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
Size: 5.50" x 3.00" x 0.67" Max
VSWR: 2.0:1 Max
Connectors: RF (J1, J2): SMA (f) removable IAW MIL-STD-202
CONTROL & POWER (J3): D-SUB, D89 Connector
Finish: Painted Blue, Mounting Surface free of paint
Power Supply: +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
Output 2nd Harmonic: 55 dBc @ 10 dBm Input Power
Power Handling: + 27 dBm Max - Operation
+30 dBm Max - Survival
Logic Input: TTL Compatible, 3 BITS Decode
Environmental Ratings:
Operating Temperature: +10 °C to +55 °C Base Plate
Non-Operating Temperature: -10 °C to +85 °C
Humidity: MIL-STD-202, METHOD 1038 COND. B
Shock: MIL-STD-202, METHOD 2138 COND. B
Vibration: MIL-STD-202, METHOD 2040 COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 1070 COND. A
