| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 6 |
|---|
| Operating Frequency (GHz): | 2 to 53 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 53 |
|---|
| Switching Speed: | 200 ns Typ (From 50% TTL to 90%/10% RF) |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +15 VDC @ 1 A Max
-15 VDC @ 100 mA Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Gain: | 20 dB Min |
|---|
| Output 2nd Harmonic: | 45 dBc @ -5 dBm Output Power (Filter passband must be selected for Maximum harmonic attenuation. Thru path 2nd harmonic value TBD) |
|---|
| Power Handling: | +10 dBm Max |
|---|
| Output P1dB: | 0 dBm goal, -5 dBm Min |
|---|
| Logic Input: | TTL Compatible, 3 Bit Decoded
TTL High = 2 V Min
TTL Low = 0.8 V Max |
|---|
| Connectors: | RF (J1, J2): 2.4 mm Female Removable IAW MIL-STD-202
Control & Power (J3): D-Sub, DB9 Connector |
|---|

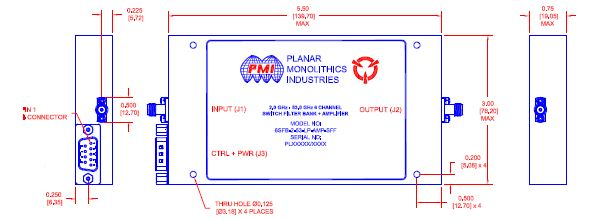

| Size: | 5.50" x 3.00" x 0.75" max. |
|---|
| Finish: | Painted Blue, Mounting Surface Free of Paint |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | +10 °C to +55 °C |
|---|
| Non-Operating Temperature: | -10 °C to +60 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
