| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 6 |
|---|
| Frequency Min: | 2.0 GHz |
|---|
| Frequency Max: | 20.0 GHz |
|---|
| Insertion Loss: | 8 dB Max |
|---|
| Switching Speed: | 200 ns Typ |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max |
|---|
| DC Current (mA): | +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max |
|---|

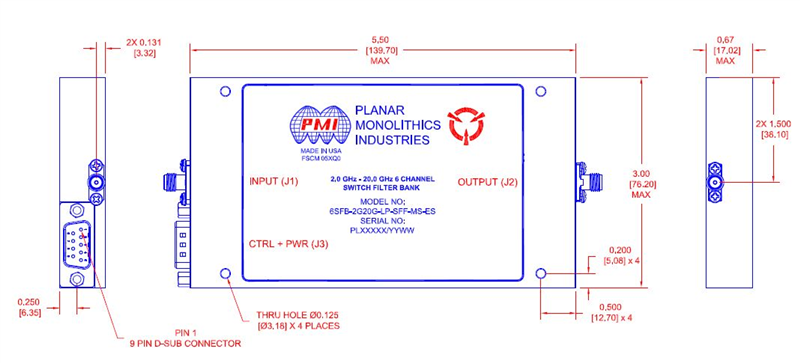

| Size: | 5.50" x 3.00" x 0.67" Max
139.70 mm x 76.20 mm x 17.02 mm Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Connectors: | RF: (J1, J2) SMA FEMALE (REMOVABLE) IAW MIL-STD-202
J3 - CONTROL & POWER: D-SUB, DB9 CONNECTOR |
|---|
| Finish: | Painted Blue, Mounting Surface Free of Paint |
|---|
| Power Supply: | +15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max |
|---|
| Output 2nd Harmonic: | 55 dBc Typ @ 0 dBm input power |
|---|
| Power Handling: | +27 dBm Max - Operational
+30 dBm Max - Survival |
|---|
| Logic Input: | TTL Compatible, 3 bits decoded
TTL High = 2 V Min
TTL Low = 0.8 V Max |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | +10 °C TO +55 °C BASE PLATE |
|---|
| Non-Operating Temperature: | -10 °C TO +85 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 2040 COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 1070 COND. A |
|---|
