6SFB-5925197-SMA Preliminary
6-Channel Switch Filter Bank

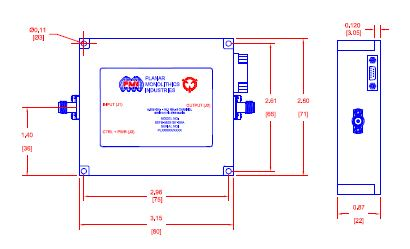

Quantic PMI Model 6SFB-5925197-SMA is a 6-channel switch filter bank that operates over the 5.925 to 19.7 GHz frequency range. This model offers fast switching speeds of 200 ns. Package size is 3.15" x 2.8" x 0.87" with a DB9 subminiature D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 6 |
| Operating Frequency (GHz): | 5.925 to 19.7 |
| Frequency Min (GHz): | 5.925 |
| Frequency Max (GHz): | 19.7 |
| Insertion Loss (dB): | 5.5 dB |
| Switching Speed: | 200 ns Max |
| Control Type: | TTL |
| DC Voltage: | +5 VDC @ 600 mA Max -5 VDC @ 100 mA Max |
| VSWR: | 2.0:1 Max |
| Impedance: | 50 Ohm |
| Input Power: | 1 W Max |
| Connectors: | RF: SMA Female Power & Control: 9 Pin Micro D Female |
| Size: | 3.15" x 2.8" x 0.87" |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 °C to +85 °C |
| Non-Operating Temperature: | +55 °C to 125 °C |
| Humidity: | 5 to 85% |
| Shock: | 50G, 1/2 Sine |
| Vibration: | 10G RMS, 20-2000H |
