6SFB-CC-100M18G-MAH-RX-TX Active

Integrated Dual 6-Channel Filter Bank Module

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/6SFB_CC_100M18G_MAH_RX_TX_73937849_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/6SFB_CC_100M18G_MAH_RX_TX_1A_33916520_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/6SFB_CC_100M18G_MAH_RX_TX_1B_437514_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/6SFB_CC_100M18G_MAH_RX_TX_Assy_29133780_400.png
Product Feature

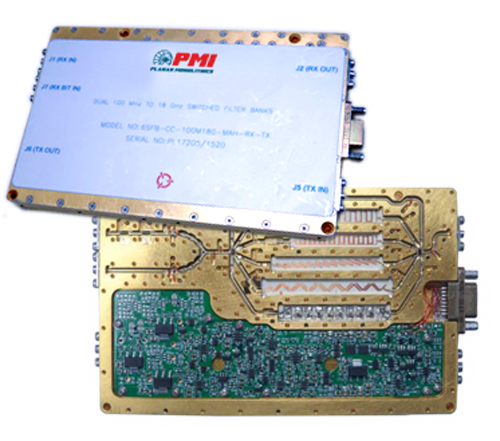

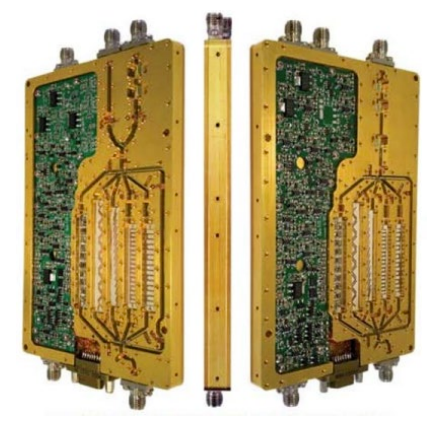

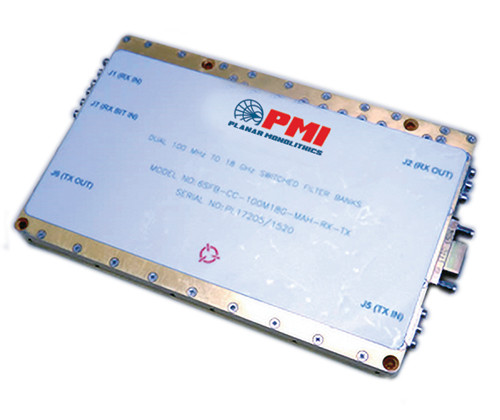

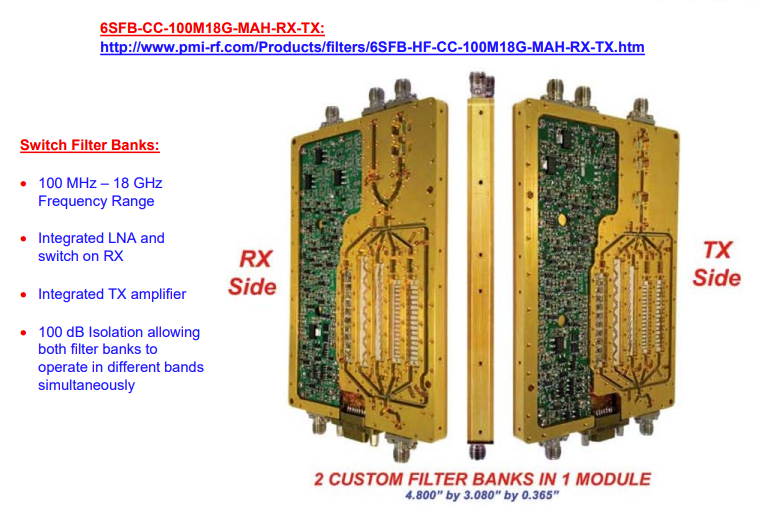

Quantic PMI Model No. 6SFB-CC-100M18G-MAH-RX-TX is an integrated module containing two 6-channel switched filter banks covering 100 MHz to 18.0 GHz. A receive switched filter bank has 2 inputs, one with 18 dB gain and one with 10 dB insertion loss. The absorptive input switch has 100 dB isolation between the 2 inputs. A transmit switched filter bank has 32 dB typical gain while allowing 1 of 6 filter paths to be chosen. Both filter banks can be used simultaneously in different bands. The unit measures only 4.80" x 3.08" x 0.365".

Channel 1 Center Frequency3400 MHz
    3 dB Bandwidth2000 MHz
    Rejection

-40 dBc Typ, 100 MHz - 2 GHz, -30 dBc Min

-40 dBc Typ, 4.8 GHz - 18 GHz, -30 dBc Min

  Channel 2 Center Frequency5400 MHz
    3 dB Bandwidth2000 MHz
    Rejection

-40 dBc Typ, 100 MHz - 4 GHz, -30 dBc Min

-40 dBc Typ, 6.8 GHz - 18 GHz, -30 dBc Min

  Channel 3 Center Frequency

7400 MHz

    3 dB Bandwidth2000 MHz
    Rejection

-40 dBc Typ, 100 MHz - 6 GHz, -30 dBc Min

-40 dBc Typ, 8.8 GHz - 18 GHz, 30 dBc Min

  Channel 4 Center Frequency9400 MHz
    3 dB Bandwidth2000 MHz
    Rejection

-40 dBc Typ, 100 MHz - 8 GHz, -30 dBc Min

-40 dBc Typ, 10.8 GHz - 18 GHz, -30 dBc Min

  Channel 5 Center Frequency11400 MHz
    3 dB Bandwidth2000 MHz
    Rejection

-40 dBc Typ, 100 MHz - 10 GHz, -30 dBc Min

-40 dBc Typ, 12.8 GHz - 18 GHz, -30 dBc Min

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 6
Frequency Min: 0.1 GHz
Frequency Max: 18.0 GHz
Insertion Loss: 10 dB
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: +12 VDC
+5 VDC
+3.3 VDC
-12 VDC
DC Current (mA): 600 mA Max
550 mA Max
0 mA
300 mA Max
Size: 4.80" x 3.08" x .0365"
Isolation: J1, J7: 100 dB
VSWR: 2:1 Max
Connectors: SMPM (F)
Finish: Gold Plated
